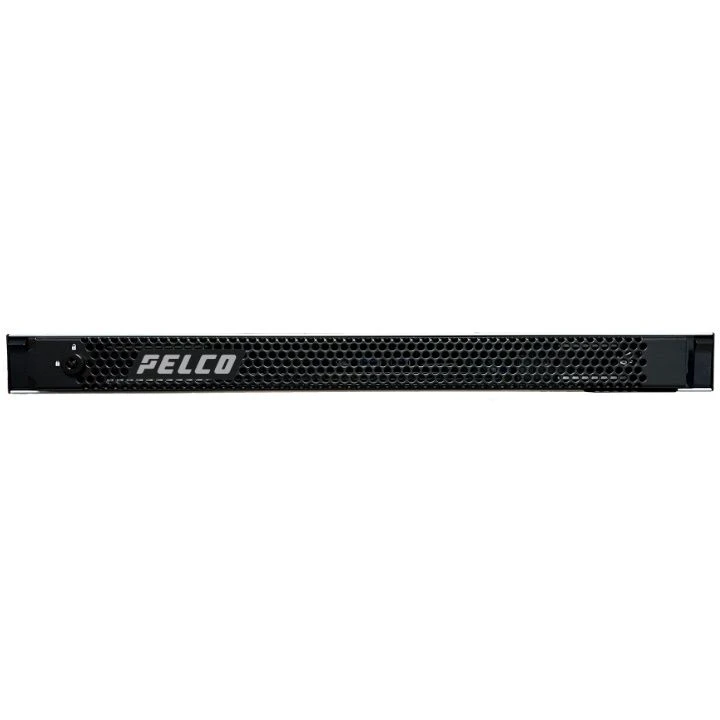

Pelco VXP-E3-0-J-S VideoXpert Pro Eco 3 Server

VideoXpert Professional not only comes as a software package, but also as a range of hardware options. This includes the Eco 3 Server, designed for use with Windows 10 IoT OS.

The Eco 3 Server is avaliable in a selection of TB options

– VXP-E3-0-J-S – 0TB model, with unconfigured effective capacity, designed for users to add their own system storage – Recommended Hard Drives can be found on this page under ‘Related products’

– VXP-E3-4-J-S – 4TB model, with 3.63TB effective capacity

– VXP-E3-8-J-S – 8TB model, with 7.26TB effective capacity

– VXP-E3-12-J-S – 12TB model, with 10.89TB effective capacity

– VXP-E3-24-J-S – 24TB model, with 21.78TB effective capacity

– VXP-E3-32-J-S – 32TB model, with 29.10TB effective capacity

Hardware Specifications:

Form Factor	Rack 1U
Processor	Intel Core i5-9500
Memory	16GB DDR4
Operating System	Microsoft Windows 10 IoT Enterprise 64-bit (LTSC)
OS Drive	M.2 NVMe 256GB
Storage	0TB / 4TB / 8TB / 12TB / 24TB / 32TB
Max Storage	32TB (7200 RPM SATA)
RAID Level	JBOD
Dell iDRAC Controller	/
USB Ports	USB 3.0 – x2 front – USB .1 Type-C – x1 front, x2 rear
Power Input	100 to 240 VAC 50/60 Hz
Power Supply	Internal 550W – 1 included (2 max)
Power Consumption	2107 BTU/hr max (550W supply)
Dimensions	(D x W x H) 57.75 x 48.2 x 4.28 cm

Included Accessories:

– Keyboard and Mouse

– USB Drive containing resource and recovery information

– Rack mount kit

– x4 Mini DisplayPort to DisplayPort

– US, UK, and EU power cords

---

Additional Features

– Supports environments that use Anti-virus and Firewall software

– Allows for users to monitor multiple VideoXpert Pro sites with a single client

– Imports users and roles from LDAP servers to reduce administrative overhead, and enables single sign-on (SSO)

– Allows users to assess VMS and camera health using SNMP (avaliable as a free separate download)

– Includes support for the Event Monitor service feature – this is capable of polling for alarms from devices and performing specified actions when an alarm state changes (avaliable as a free seperate download)

– Includes the ability to connect video streams to third-party clients, with customizable RTSP endpoints (allowing a client application connection to a VideoXpert system stream via the VxConnect service (avaliable as a purchasable download)

– Supports DNS hostnames for Pelco and other ONVIF-compliant cameras

---

VideoXpert Professional

Pelco’s VideoXpert Professional is a Video Management system designed with Small to Mid-size installments in mind, capable of supporting up to 100 cameras.
With an intuitve interface, robust features, and a scalable design (with the use of Camera licences), VideoXpert Pro offers an ideal VMS solution for a wide range of users, from home to small/medium business applications.

Designed for use with Windows platforms, with an intuitive ‘Plug-and-Play’ design, VideoXpert is easy to Install, Set-up and Configure. It also offers an efficient all-in-one capabilities, allowing for the use of all non-client functions on a single machine, and for the monitoring of multiple VideoXpert Pro sites with a single client.

For more information please see the linked product page – VideoXpert Pro
