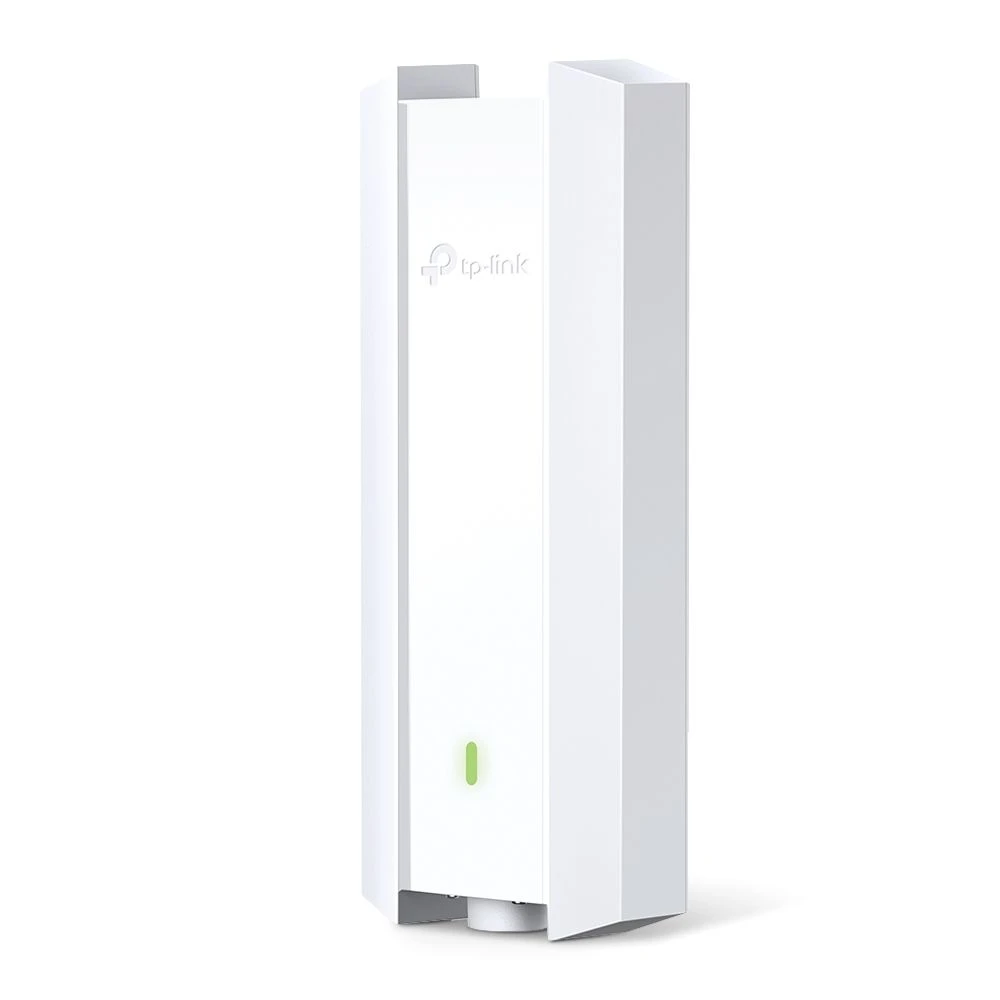

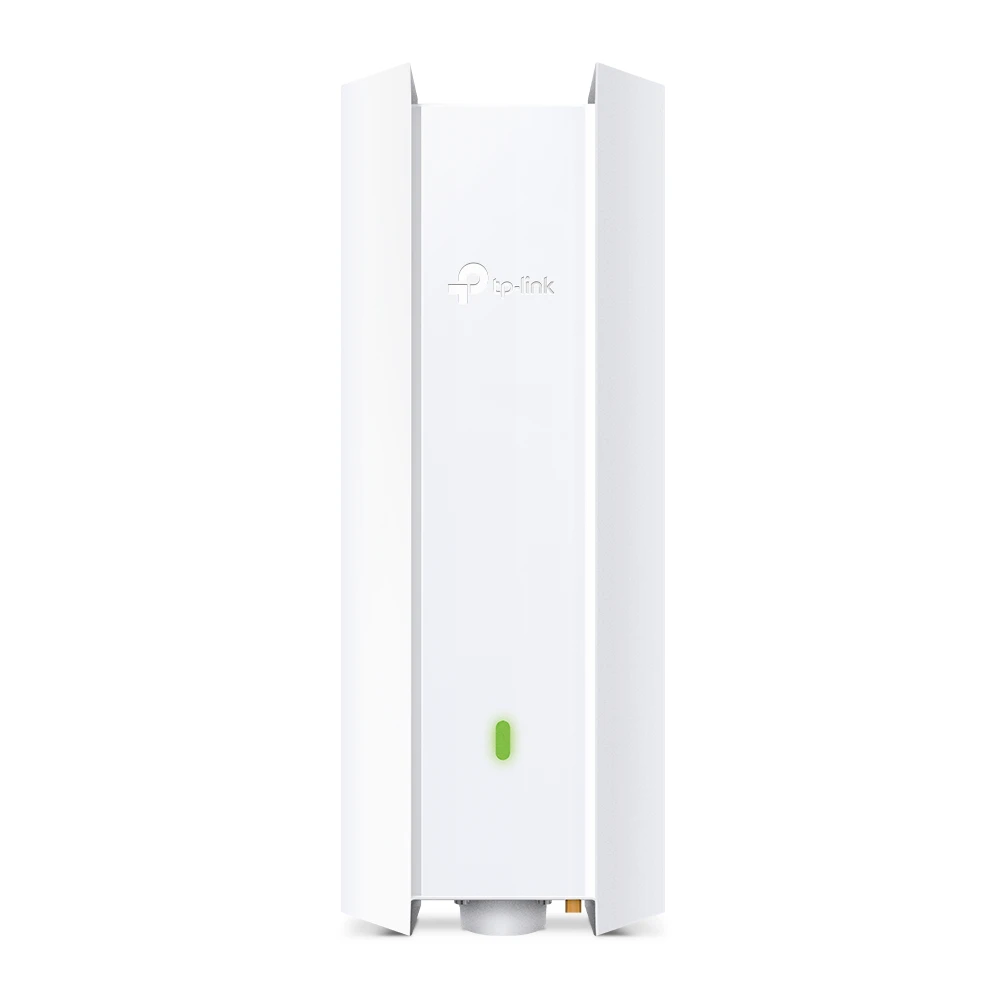

TP-Link EAP650-Outdoor AX3000 Indoor/Outdoor WiFi 6 Access Point

The TP-Link EAP650-Outdoor is an AX3000 Indoor/Outdoor WiFi 6 access point that delivers dual-band speeds of up to 3Gbps powered by the latest WiFi 6 technology. WiFi 6 is able to provide users with faster speeds, lower lag, less interference and higher capacity.

The EAP650-Outdoor is ideal for a wide range of outdoor scenarios both business and home including swimming pools, outdoor cafes, amphitheatres, parks, school playgrounds, gardens, sheds etc. As well as this the unit features long-range coverage thanks to the professional antennas equipped with high-power amplifiers. They utilise WiFi 6 technology to provide strong and expansive wireless coverage to various outdoor environments.

Equipped with TP-Link’s smart antenna technology, the EAP650-Outdoor provides lower interference, longer coverage and higher performance. With both horizontally polarised and vertically polarised antennas the device’s algorithms will automatically be able to select the optimal antennas to ensure a peak WiFi experience for users.

Other Features:

– Less wiring with mesh: mesh technology saves users from extra wires by wirelessly extending their WiFi signal further to hard-to-wire areas

– Powered with PoE+ switch: the device is powered and connected by an 802.3at PoE+ switch using one single cable for convenient deployment.

– Powered with passive PoE: powered and connected by the provided passive PoE adapter using one single cable, ideal for home WiFi deployment.

Hardware Features

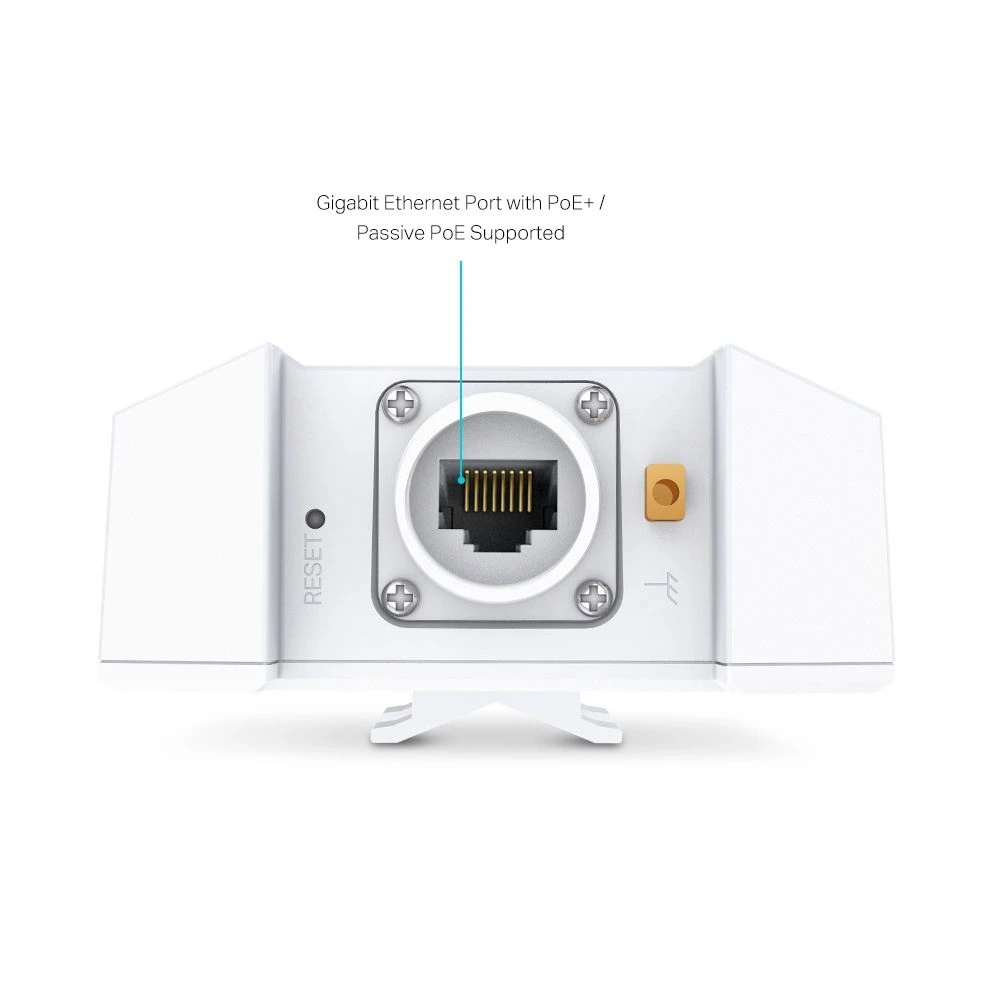

Interface	1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
Power Supply	• 802.3at PoE • 48V Passive PoE (PoE Adapter Included)
Power Consumption	12.5W (802.3at PoE or Passive PoE)
Dimensions	280.4×106.5×56.8 mm (without antenna & mounting kit)
Antenna Type	• 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi

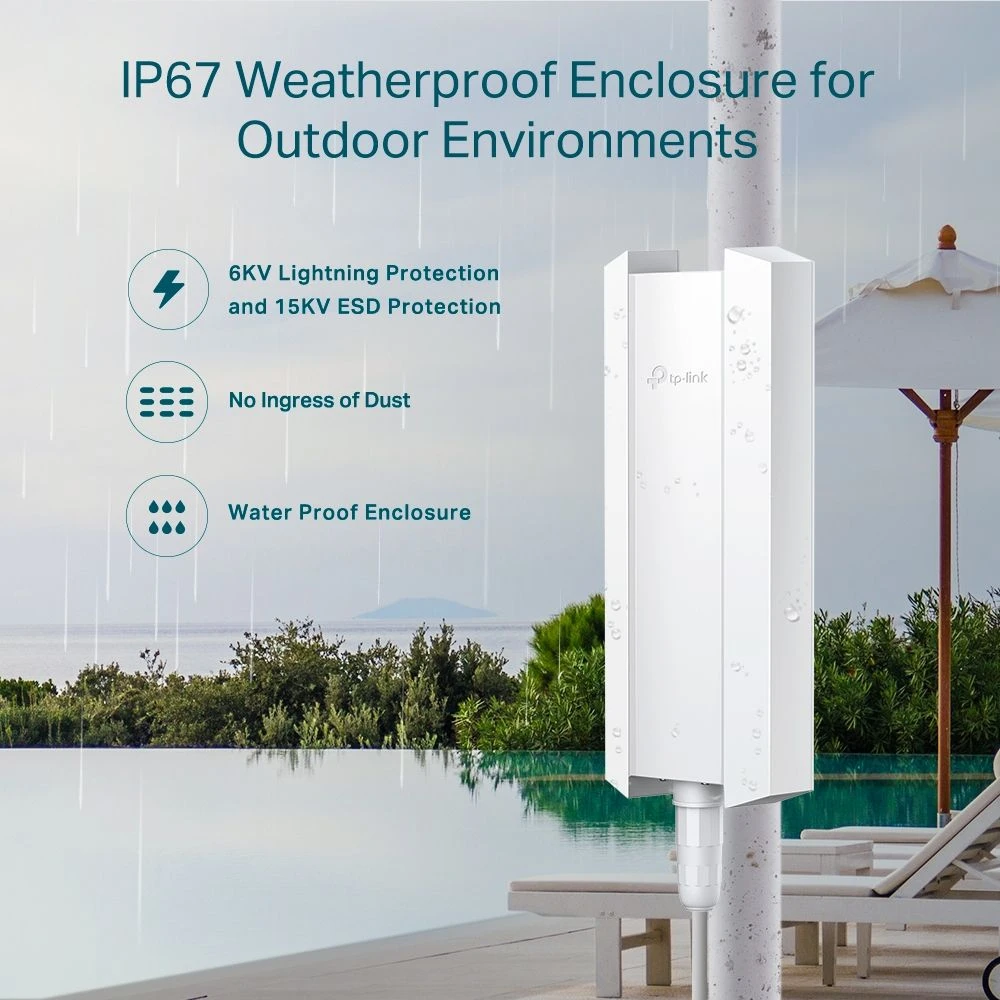

Weather-Resistant Enclosure	IP67

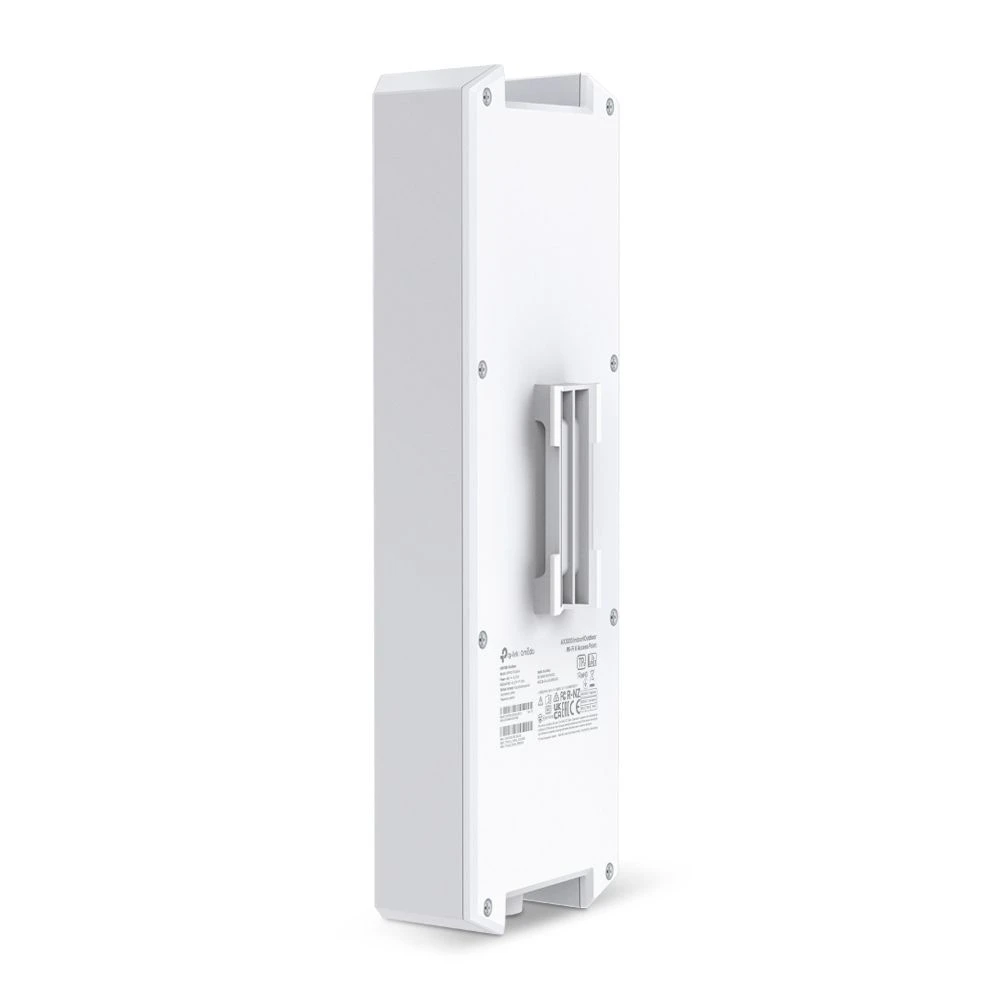

Mounting	Pole/Wall Mounting (Kits included)
Wireless Features
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80) • 802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80) • 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40) • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps • 802.11b: 1, 2, 5.5, 11 Mbps • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions	• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • MU-MIMO • Omada Mesh3 • Seamless Roaming3 • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security	• Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: <20 dBm (2.4 GHz, EIRP) <30 dBm(5 GHz, EIRP) • FCC: <25 dBm (2.4 GHz) <25 dBm(5 GHz)
Management
Omada App	Yes

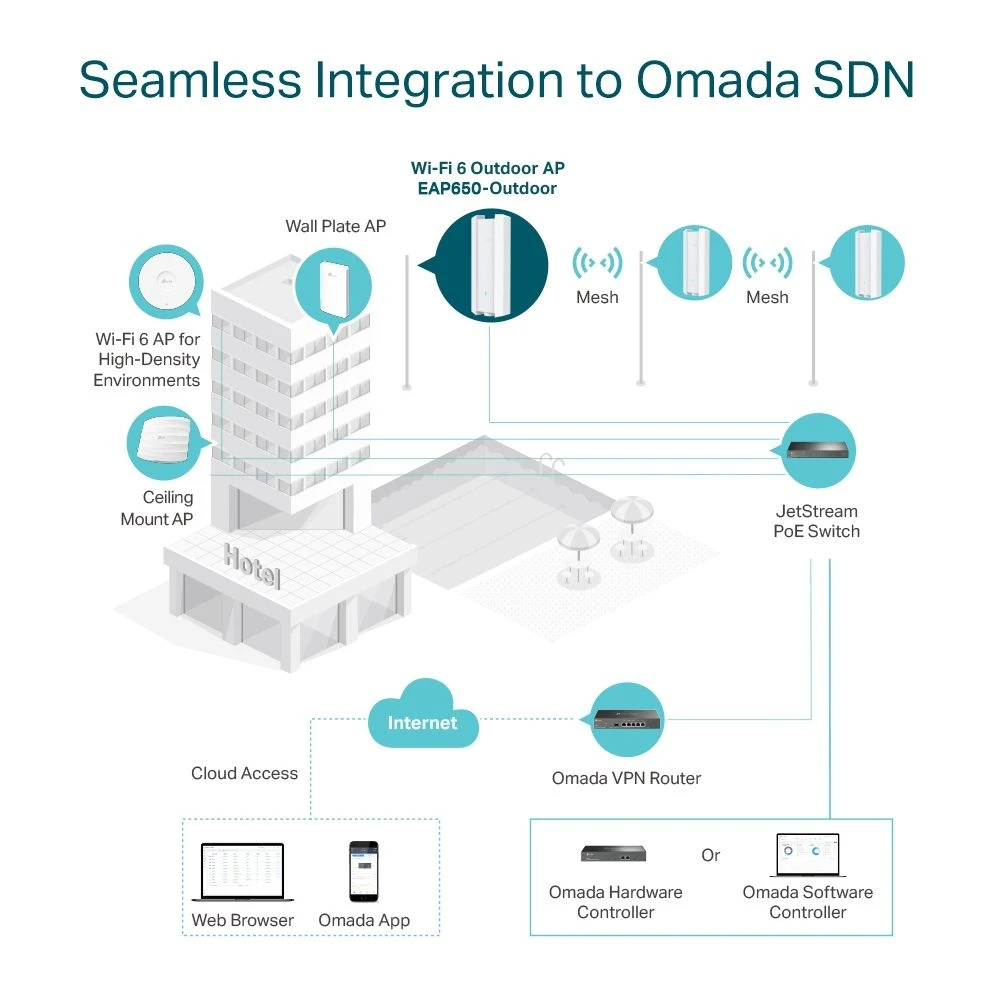

Centralised Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes, through • Omada Cloud-Based Controller • OC300 • OC200 • Omada Software Controller
Email Alerts	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Yes
SSH	Yes
Web-based Management	Yes
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller
Others
Certification	CE, FCC, RoHS
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment	• Operating Temperature: -30–70 ℃ (-22–158 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing



---

Package Contents:

– EAP650-Outdoor

– Passive PoE adapter

– Power cord

– Mounting kits

– Installation guide
