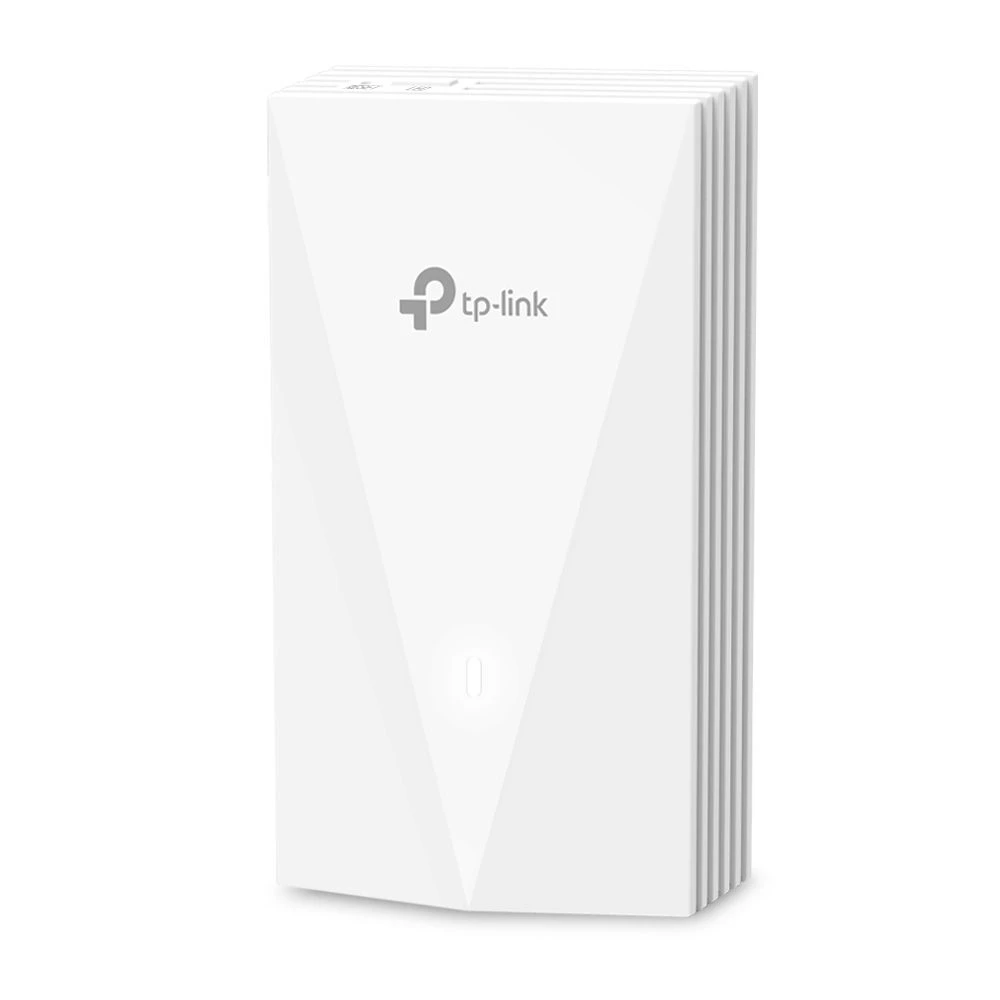

TP-Link EAP655-Wall AX3000 Wall Plate WiFi 6 Access Point

The TP-Link EAP655-Wall is an AX3000 Wall Plate WiFi 6 access point with WiFi speeds of 574Mbps on 2.4GHz and 2402Mbps on 5GHz. WiFi 6 is able to provide users with faster speeds, lower lag, less interference and higher capacity.

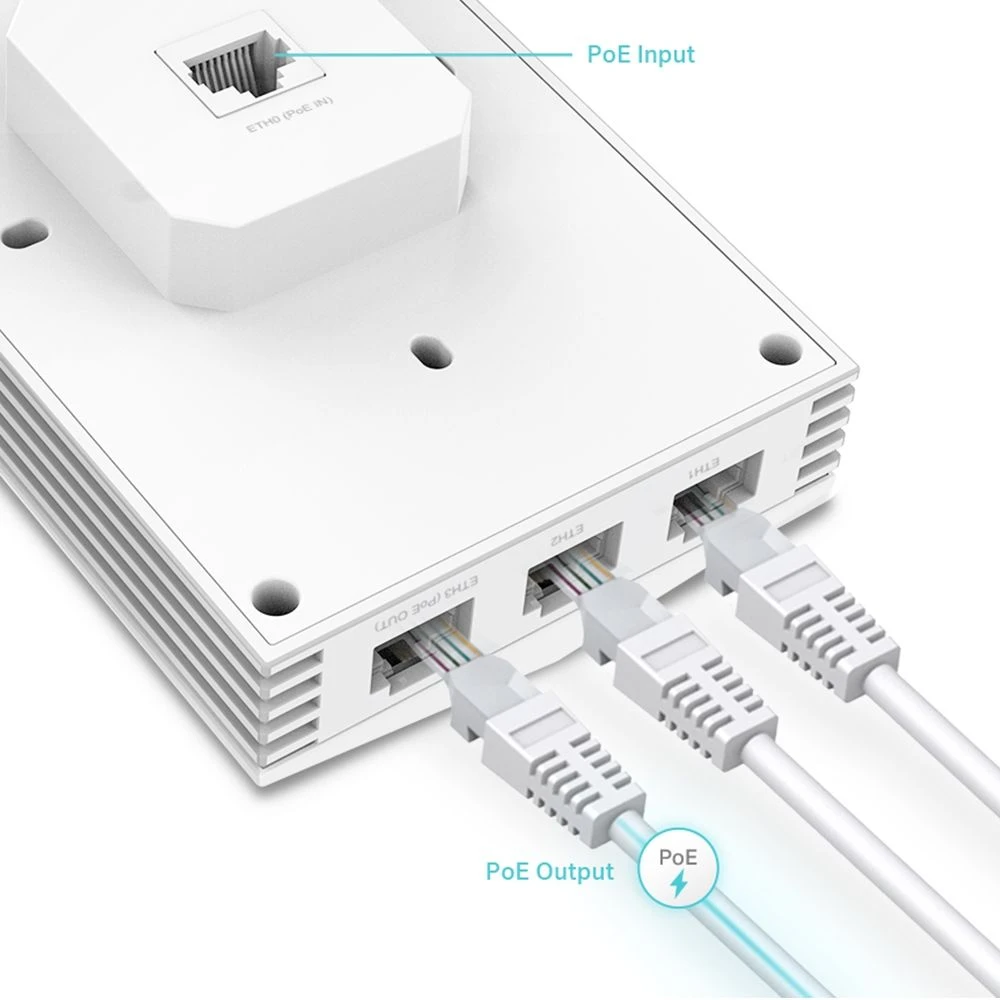

The EAP655-Wall features full Gigabit ports to bridge the network and four data ports (1 x uplink and 3 x downlink) to transfer data at multiple gigabits. Users can connect several devices to the network such as VoIP phones, printers, smart TVs, PCs etc without the need for extra electrical cables. Not only this but one of the downlink ports offers PoE pass-through, eliminating the need for an extra power port.

Other Features:

– Secure Guest Network up to 16 SSIDs: provides enhanced security to guests. Different SSIDs also enable flexible access management.

– Boost business with Facebook WiFi and SMS login: captive portal and 802.1x authentication help maintain authorised guests to use the network.

– WPA3 for worry-free open public networks: provides more data security for previously unsecured and open WiFi hotspots.

Hardware Features
Interface	• Uplink: 1× 10/100/1000 Mbps Ethernet Port • Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE out, and the PoE out feature requires 802.3at PoE+ input.)
Power Supply	802.3af/at PoE
Power Consumption	12W (802.3at PoE, PoE Out off)
Dimensions	143 × 86 × 42.6 mm
Antenna Type	2 Dual-Band Antennas • 2.4 GHz: 2× 3 dBi • 5 GHz: 2× 5 dBi
Mounting	Wall Plate Mounting (Kits included)
Wireless Features
Concurrent Clients	100+
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz: Up to 2402 Mbps • 2.4 GHz: Up to 574 Mbps
Wireless Functions	• 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming§ • Beamforming • Rate Limit • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP
Wireless Security	• Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: <20 dBm (2.4GHz, EIRP) <23 dBm (5GHz band1 & 2, EIRP) <26 dBm (5GHz band3, EIRP) • FCC: < 21 dBm (2.4 GHz) < 21 dBm (5 GHz)
Management
Omada App	Yes
Centralised Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller
Others
Certification	FCC, RoHS
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing



---

Package Contents:

– EAP655-Wall

– Mounting kits

– Installation guide
