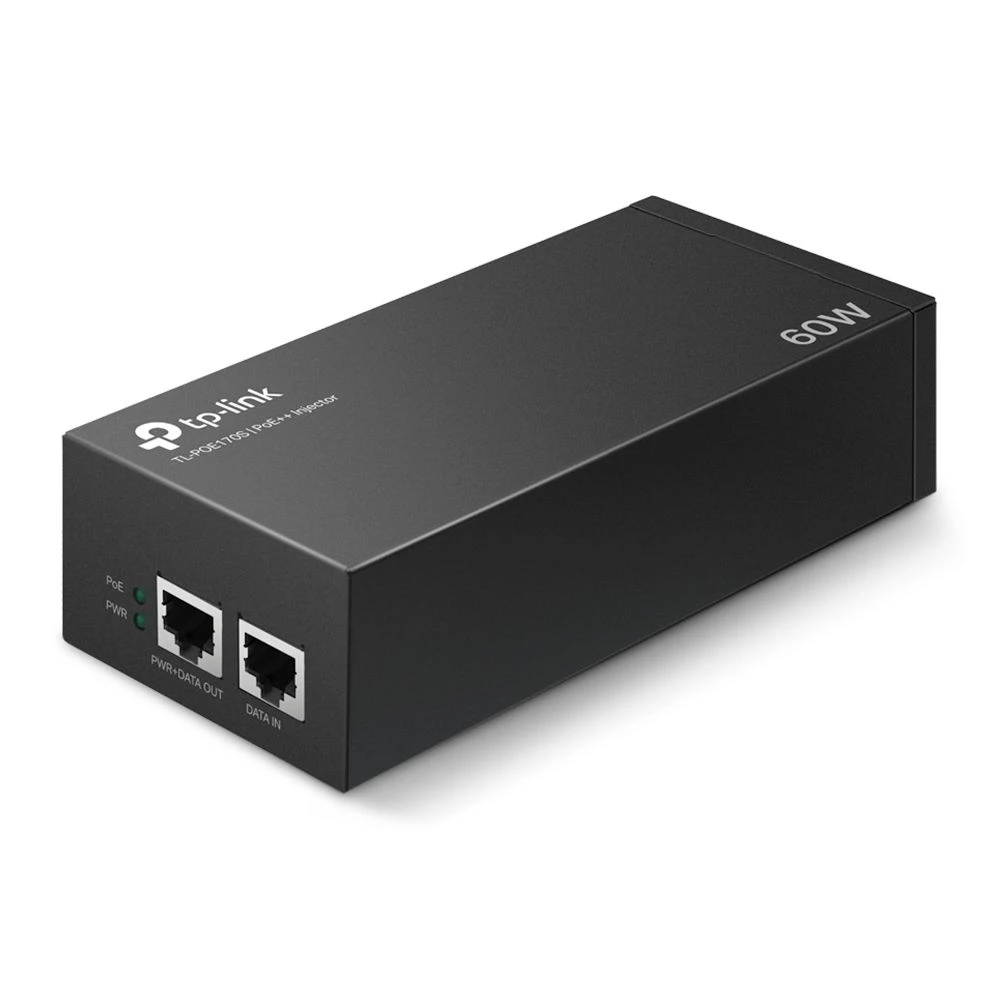

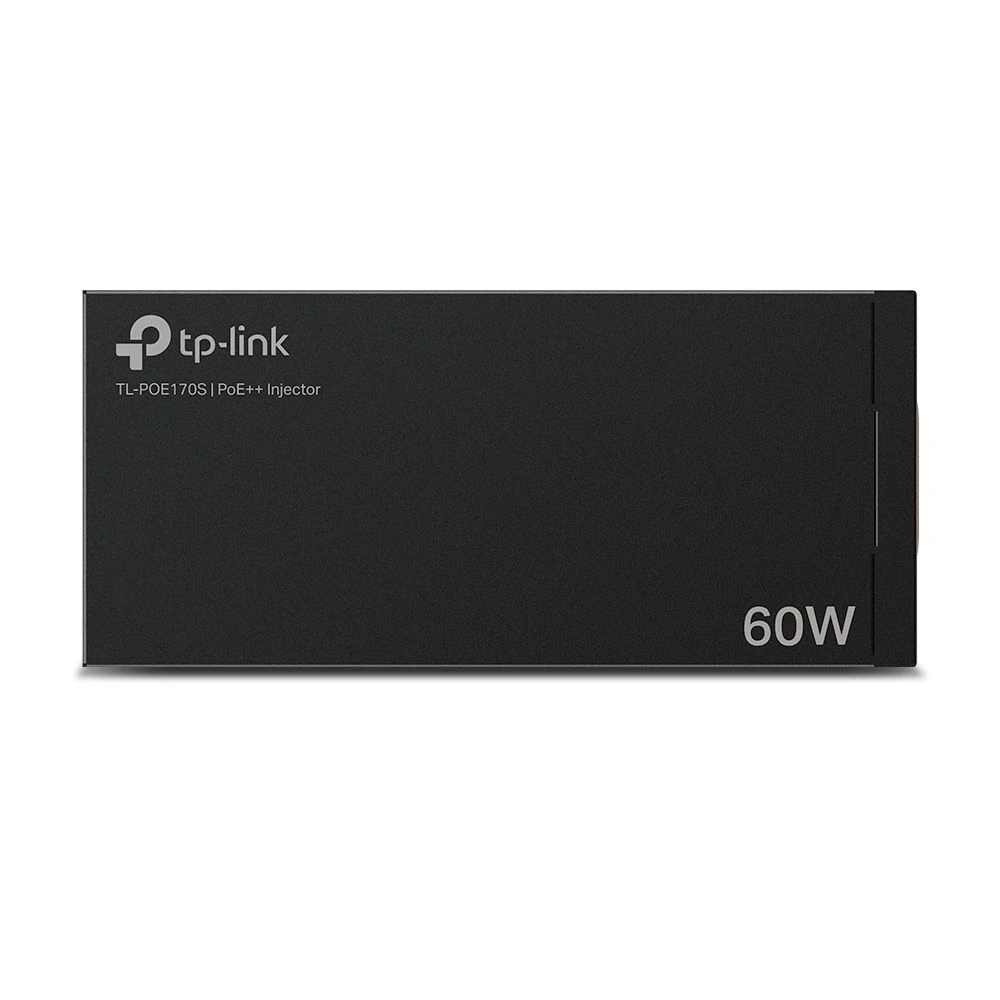

TP-Link TL-POE170S 60W PoE++ Injector

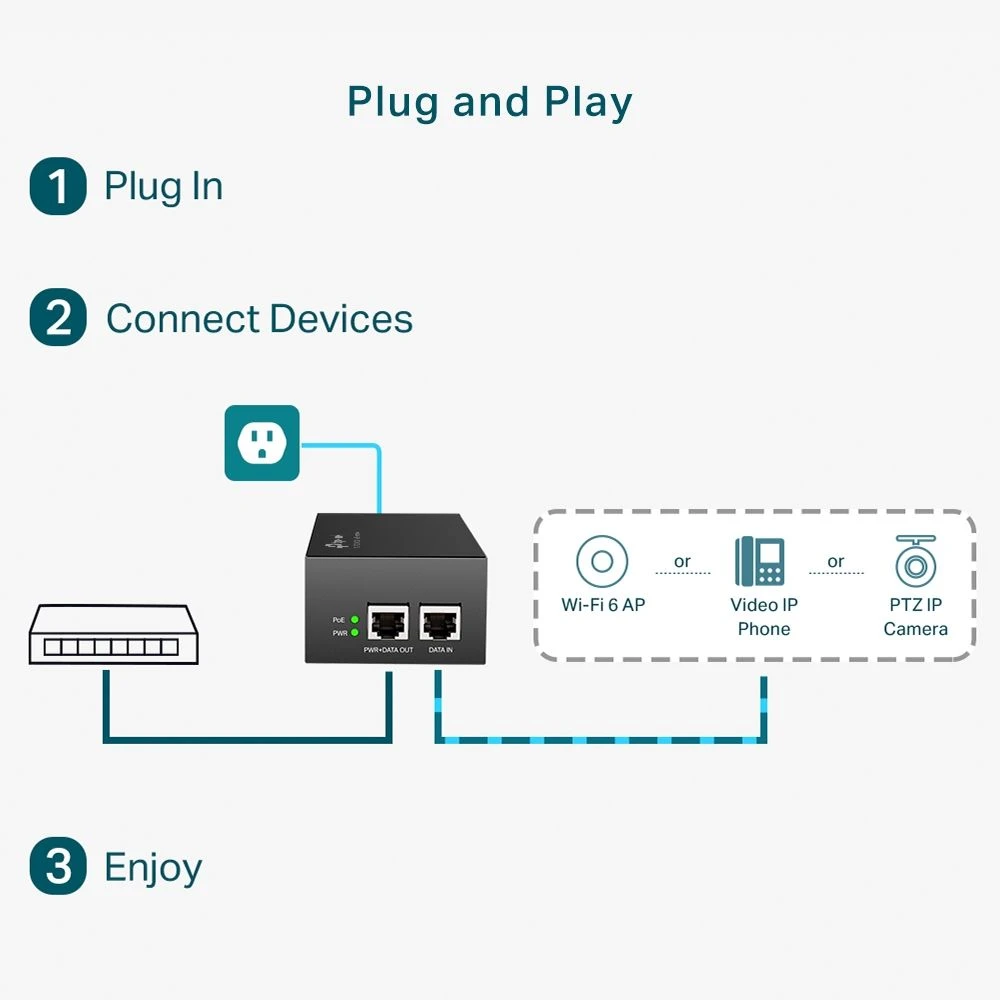

The TP-Link TL-POE170S PoE+ injector fully complies with IEEE 802.3af/at/bt standards and is able to work with all IEEE 802.3af/at PoE-compliant PDs (powered devices) or PoE receiver adapters. This power supply can reach up to 60W and so can power high-power PTZ IPC, LED, and other equipment.

Standards	IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt

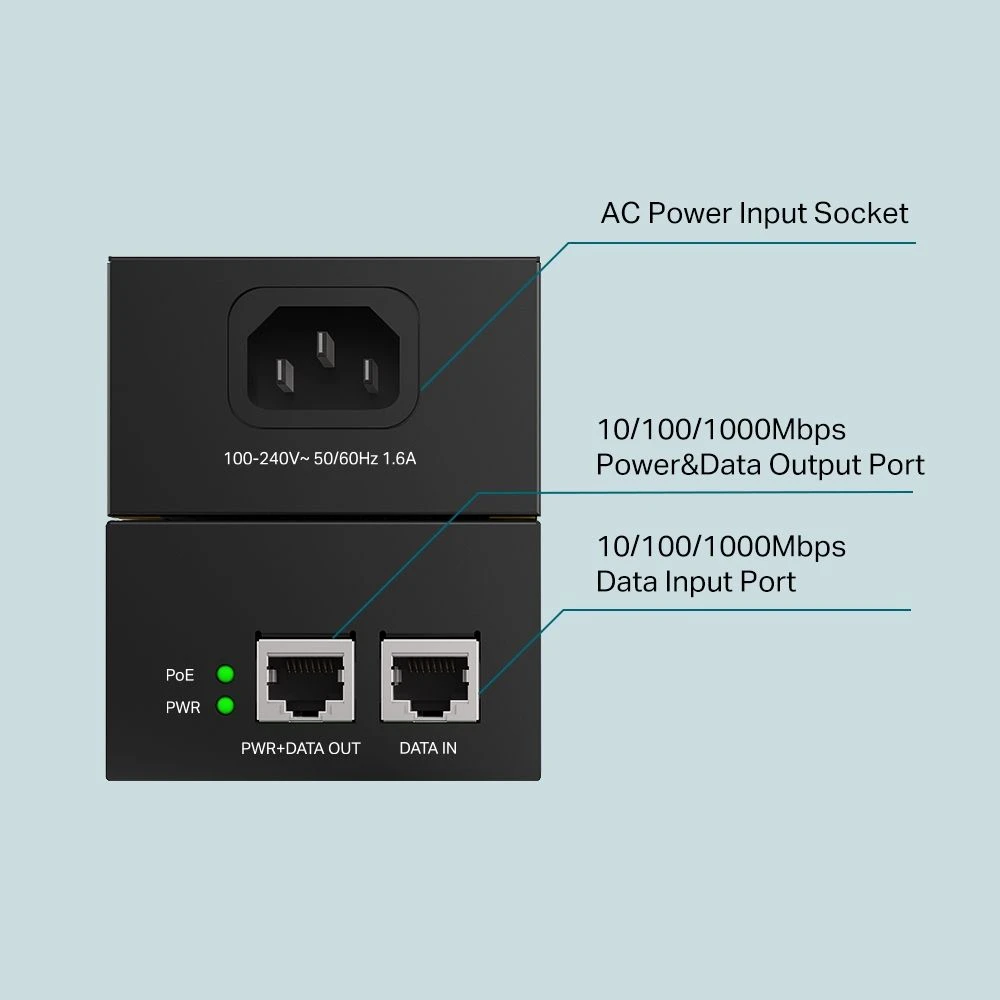

Ports	1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power+data-out port 1 AC socket
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100m)
Power	Input: 100-240 V, 50/60 Hz, 1.6 A Output: Auto-determine the necessary power requirements (max. 60 W)

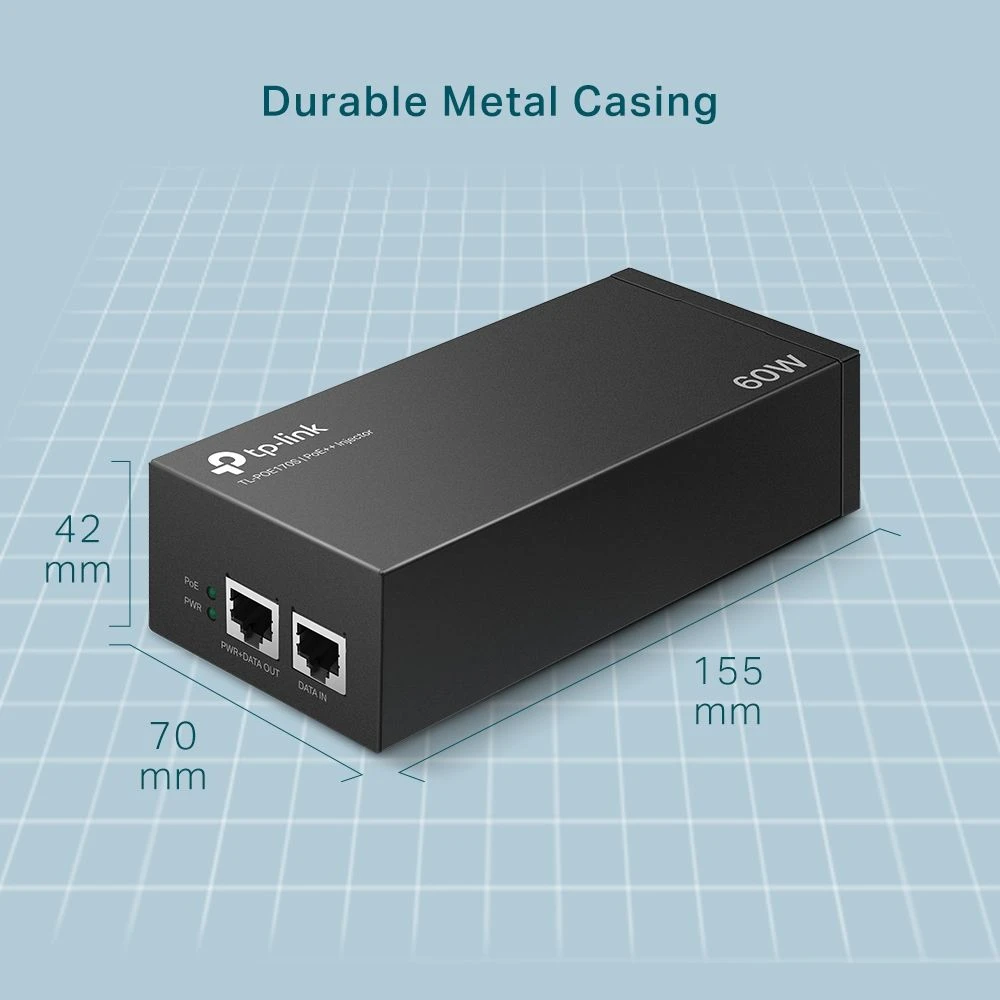

Dimensions	154.7 x 70 x 42 mm
Environment	Operating Temperature: 0°C to 45°C (32°F to 113°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing
Certification	FCC, CE, RoHS

---

Package Contents:

– TL-POE170S

– Power cord

– RJ45 cable

– Installation guide
