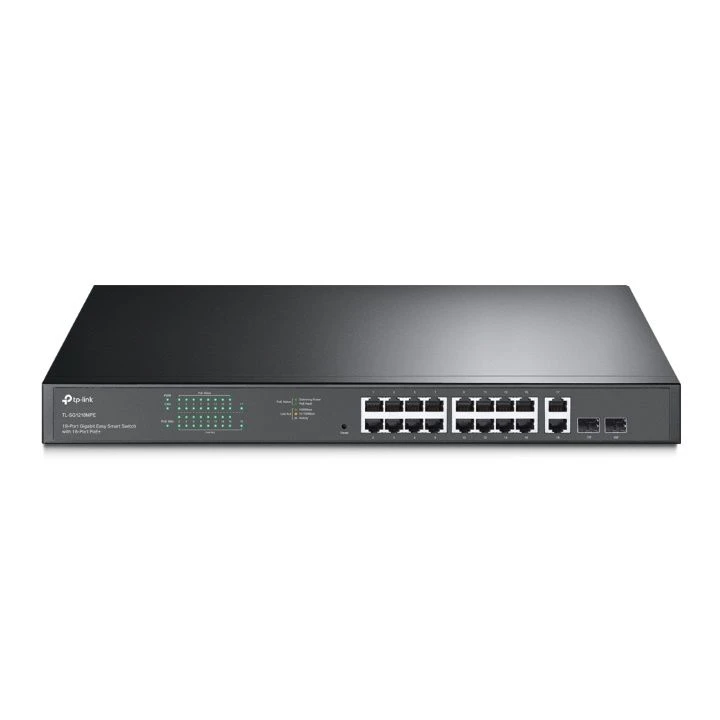

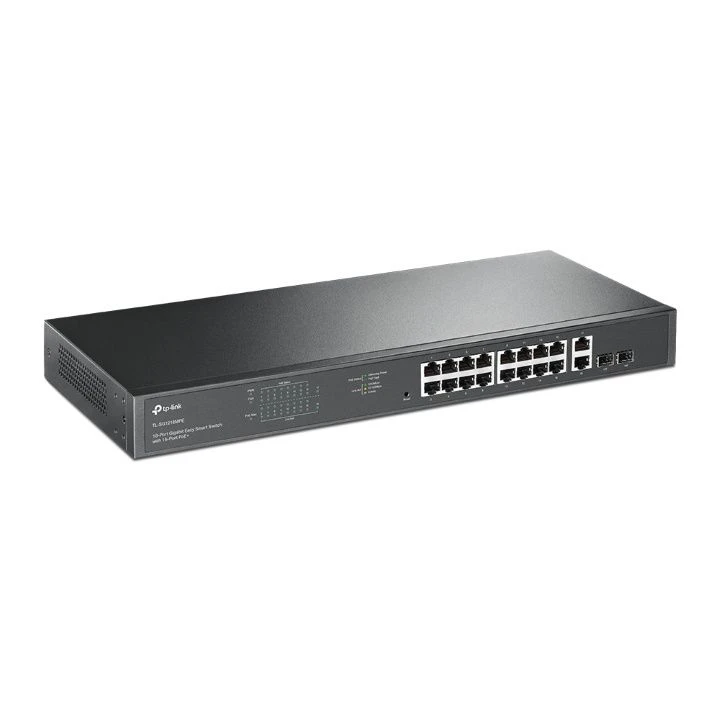

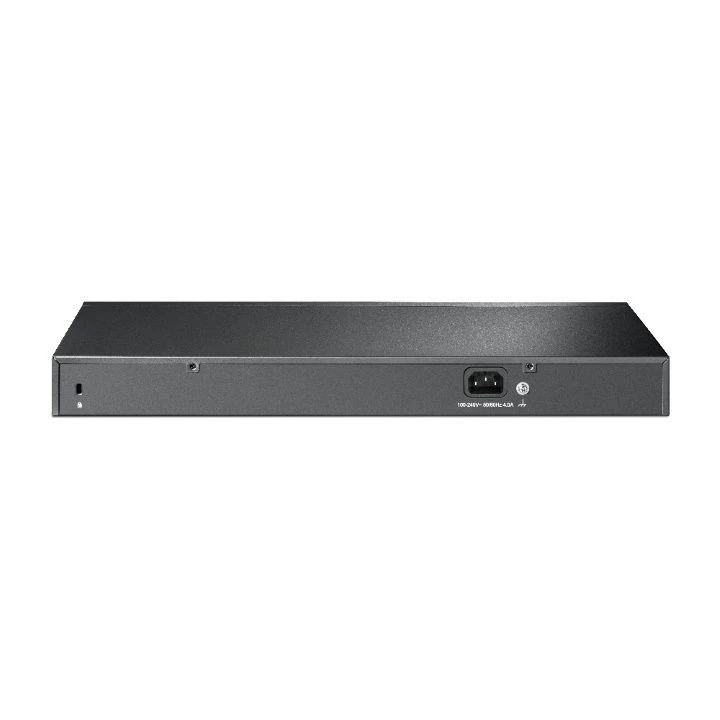

TP-Link TL-SG1218MPE 16 Port Gigabit Easy Smart PoE+ Switch

The TP-Link TL-SG1218MPE is an 18 port switch 16 of which support PoE+ and the remaining two are 2 Gigabit SFP Slots. The unit has a total power budget of 250W, up to 30W per port, and due to the powerful nature of the device, it is able to power high-powered devices such as Access Points, IP Cameras, and IP Phones. The device can also provide 802.1q VLAN, IGMP Snooping, LAG and other software functions to meet various network configuration needs.

Power over Ethernet for Simplified Network Deployment

– Features 16 802.3af/at compliant PoE+ ports, with a total PoE power budget of 250W

– Flexible deployment for PoE supported devices such as wireless access points (APs), IP Phones, and IP cameras

– Designed to use a single Ethernet cable for both data and power transmission, lowering infrastructure costs

Highlight Performance

– Advanced feature – QoS optimises the performance of quality-sensitive applications such as surveillance video, IGMP Snooping ensures the multicast stream be forwarded intelligently to the appropriate subscribers by the switch

– Configured, the TL-SG1218MPE can control Power Limit, Port Priority, and PoE scheduling of each PoE port

– PoE Auto Recovery automatically reboots dropped or unresponsive PoE powered devices

Easy to Use

– Plug and Play, no configuration required

– Auto MDI/MDIX eliminates the need for crossover cables

– Auto-negotiation intelligently adjusts for compatibility and optimal performance

Hardware Features	TL-SG1218MPE
Interface	18 x 10/100/1000Mbps RJ45 Ports 2 Gigabit Combo SFP Slots
PoE Standard	802.3af/at
PoE Ports	16, up to 30W
PoE Power Budget	250W
Power Supply	100-240V AC
Max Power Consumption	21.41W (220V no PD connected) 296.3W (220V with 250W PD connected)
Max Heat Dissipation	73.01 BTU/hr (no PD connected) 1010.38 BTU/hr (with 192W PD connected)
Dimensions	440 x 180 x 44mm
Fan Quantity	2
