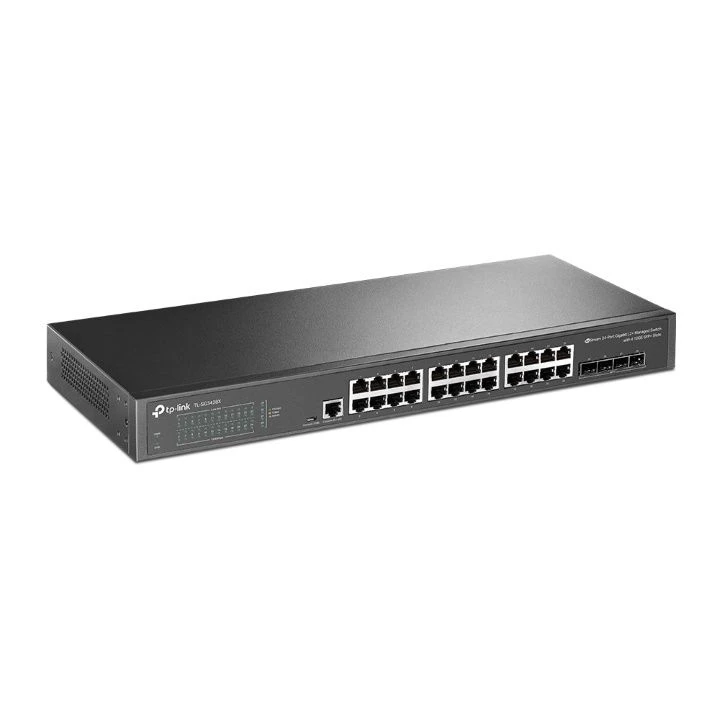

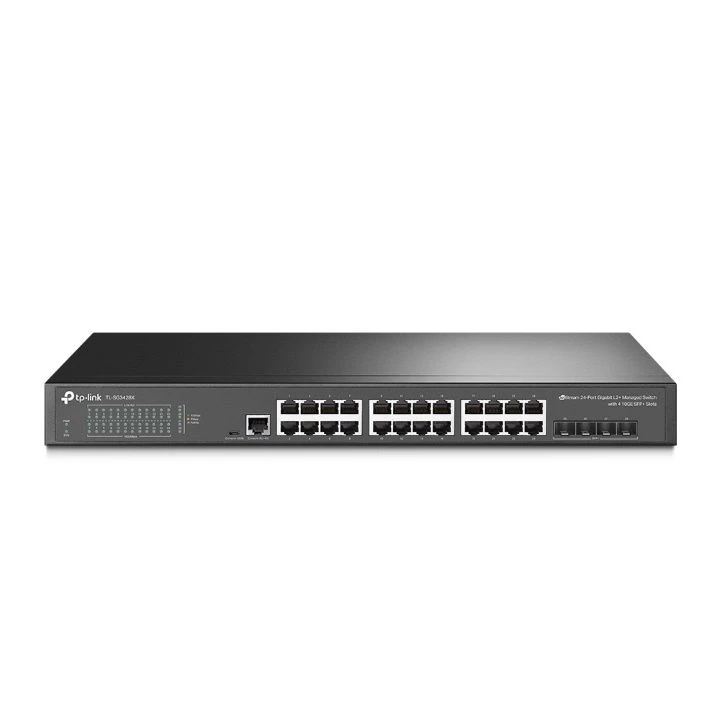

TP-Link TL-SG3428XMP JetStream 24-Port Gigabit And 4-Port 10GE SFP+ L2+ Managed Switch With 24-Port PoE+

The TL-SG3428XMP is one of TP-Link’s Jetstream L2+ managed switches, that provides high performance, powerful L2 and L2+ features such as static routing, enterprise-level QoS, advanced security strategies, and a bundle of ISP features.

The unit utilises and wide range of features which includes:

Enterprise Switch with 10G Uplink

4× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches are easily built.

Dedicated 24 PoE+ Ports (384 W Budget) for Numerous Applications

The TL-SG3428XMP has 24 802.3af/at compliant PoE+ ports and the switch supports up to 384W total PoE power budget. The unit offers flexible deployment for PoE supported devices due to the singly Ethernet cable design for both data and power transmission.

Software-Defined Networking (SDN) with Cloud Access

The Omada SDN platform integrates network devices, including access points, switchs, and gateways which enables the device to provide a 100% centralised cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Secure Networking

The TL-SG3428XMP features IP-MAC-Port-VID binding, Port Security, Storm Control and DHCP Snooping which defends the network against a variety of threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. As well as this, the the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID.

Higher Reliability

99.99% SLA availability 24/7 automated fault detection, geographically isolated backup services, and reliable product quality all help guarantee higher reliability of cloud service.

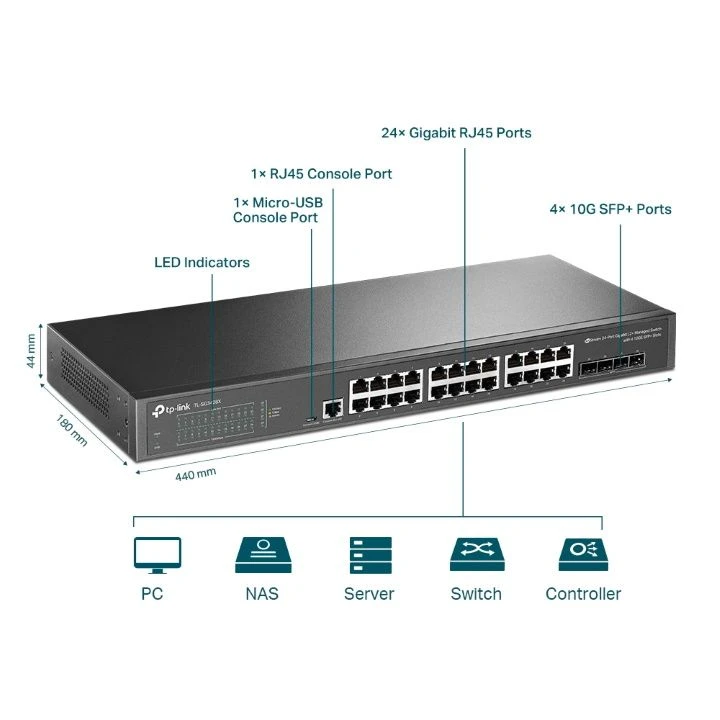

Hardware Features	TL-SG3428XMP
Interface	24 x 10/100/1000MBPS RJ45 Ports  4 x 10GE SFP+ Slots
Console	1 x RJ45 Console Port, 1 x Micro-USB Console Port
PoE Standard	802.3af/at
PoE Ports	24, up to 30W
PoE Power Budget	384W

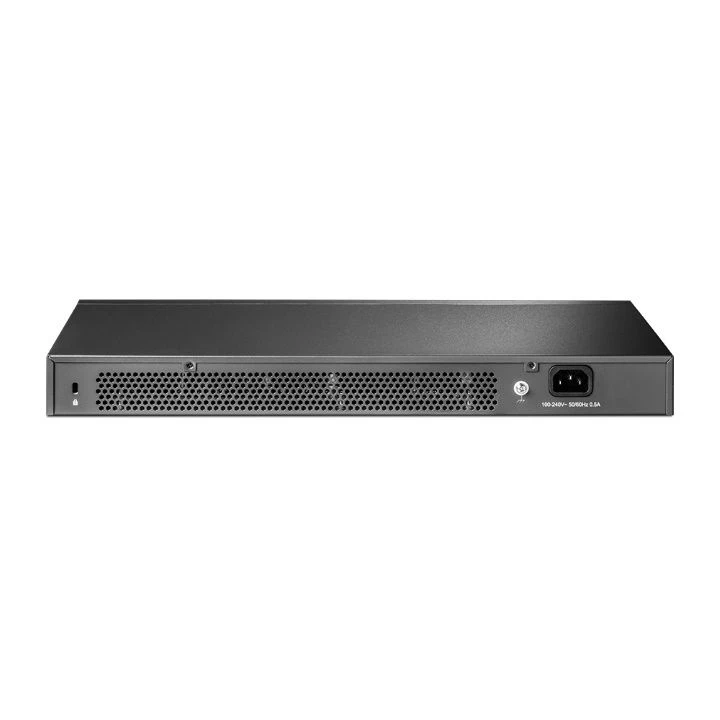

Power Supply	100-240V AC
Max Power Consumption	34.4W (No PD connected) 465.8W (with 384W PD connected)
Dimensions	440 x 330 x 44mm
Fan Quantity	2
Installation	Rack-Mountable
