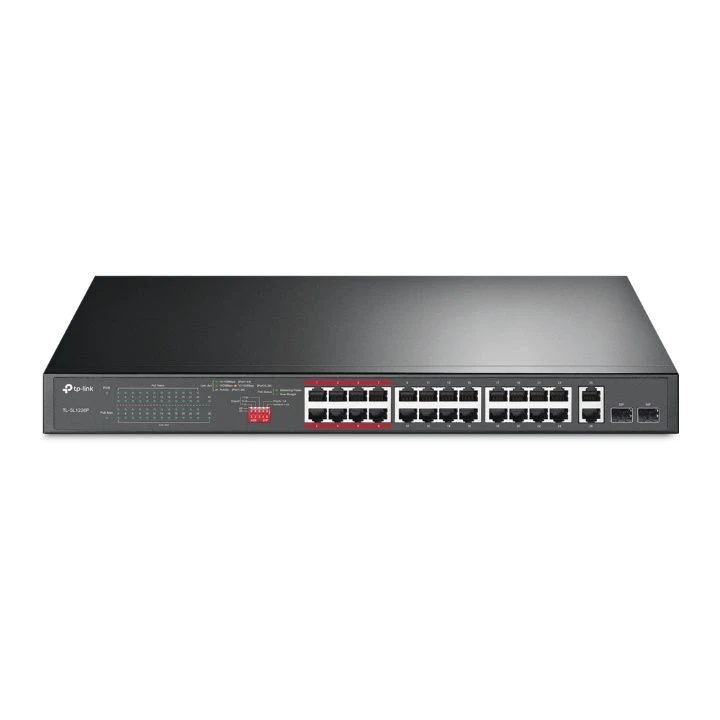

TP-Link TL-SL1226P 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch

The TL-SL1226P is one of TP-Link’s new PoE+ switches in which all 10/100Mbps RJ45 ports supporting PoE+ standard and so the device provides a simple way for users to expand the wired network while transferring power over the same ethernet cable at the same time. Supporting up to 30W per port, the TL-SL1226P can power more high-powered devices such as Access Points (APs), IP cameras, and IP phones.

As well as this, when the unit is using the innovative Extend Mode, devices are able to get PoE power supply and data transmission from a distance of up to 250m. Not only this but Priority Mode ensure high priority for ports 1-8 which guarantees the quality of sensitive applications. The TL-SL1226P also supports Isolation Mode that divides traffic for 10/100Mbps RJ45 ports for higher security and performance.

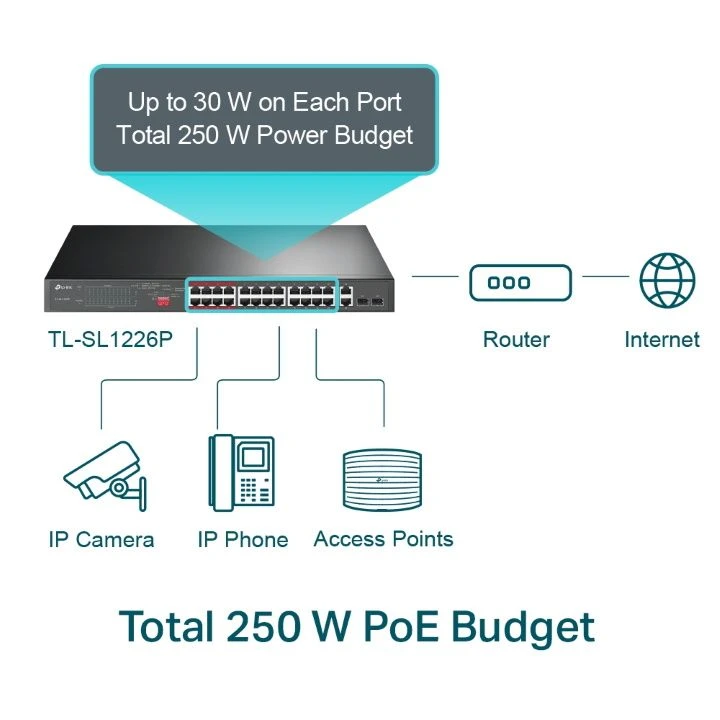

Power over Ethernet

– Features 16/24 802.3af/at compliant PoE+ ports, with a total PoE power budget of 250W

– Flexible deployment for PoE supported devices such as wireless access points, IP phones and IP cameras

– Designed to use a single Ethernet cable for both data and power transmission, lowering infrastructure costs

Highlight Performance

– Up to 260m PoE power supply and data transmission under Extend Mode

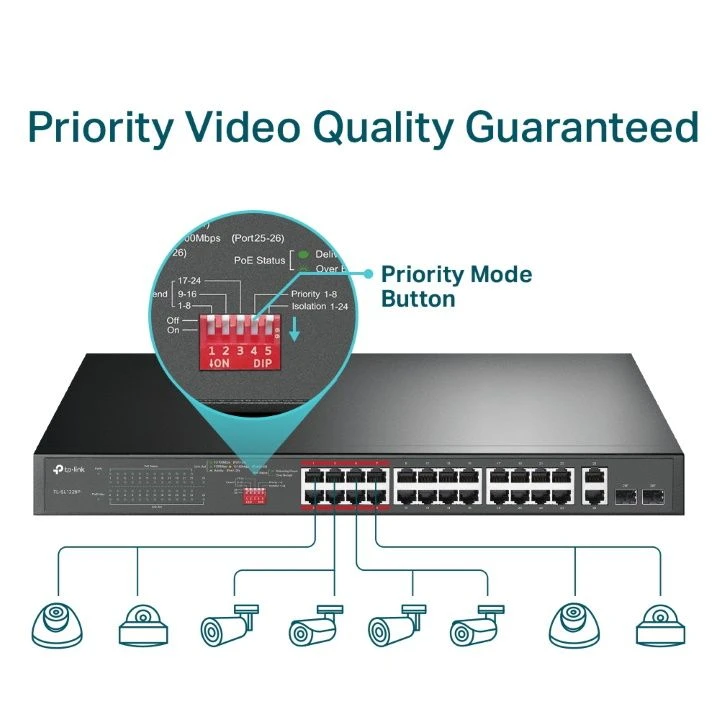

– After turning on the Priority Mode, there will be designated high priority ports for quality-sensitive applications such as video surveillance

– Isolation Mode easily divides traffic for 10/100Mbps RJ45 ports to avoid snooping and tampering which improves LAN security and performance

Easy to Use

– Play and play, no configuration required

– Auto MDI/MDIX eliminates the need for crossover cables

– Auto-negotiation intelligently adjusts for compatibility and optimal performance

Hardware Features	TL-SL1226P

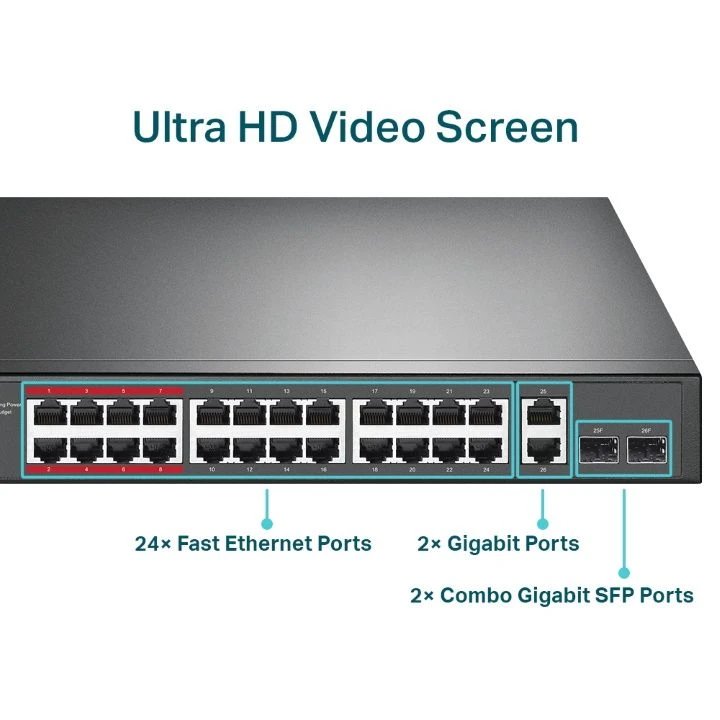

Interface	24 x 10/100Mbps RJ45 Ports 2 x 10/100/1000 Mbps RJ45 Port 2 x Combo Gigabit SFP Slot
PoE Standard	802.3af/at
PoE Ports	24, up to 30W
PoE Power Budget	250W
Power Supply	100-240V AC
Max Power Consumption	17.17W (with no PD connected) 281W (with 150W PD connected)
Max Heat Dissipation	58.55 BTU/hr (no PD connected) 958.21 BTU/hr (with 250W PD connected)
Dimensions	440 x 180 x 44mm
Fan Quantity	2
