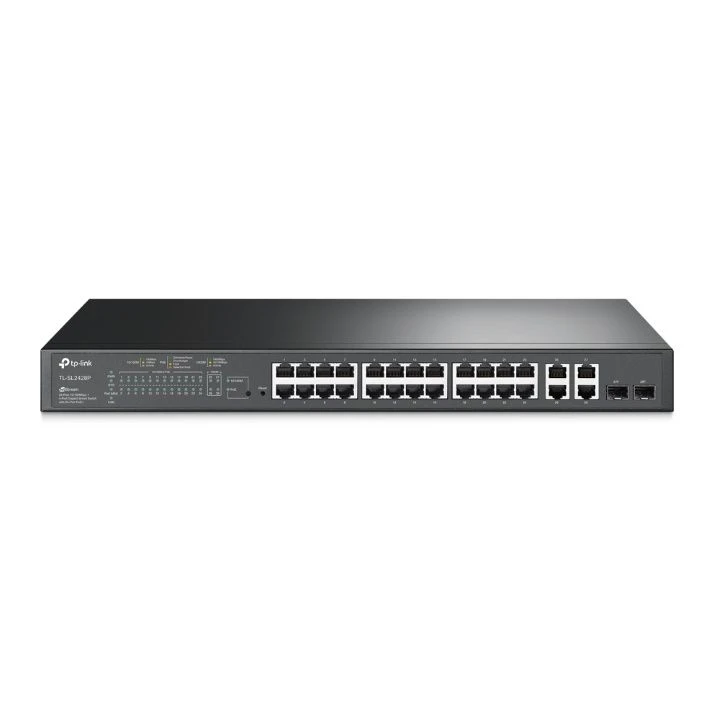

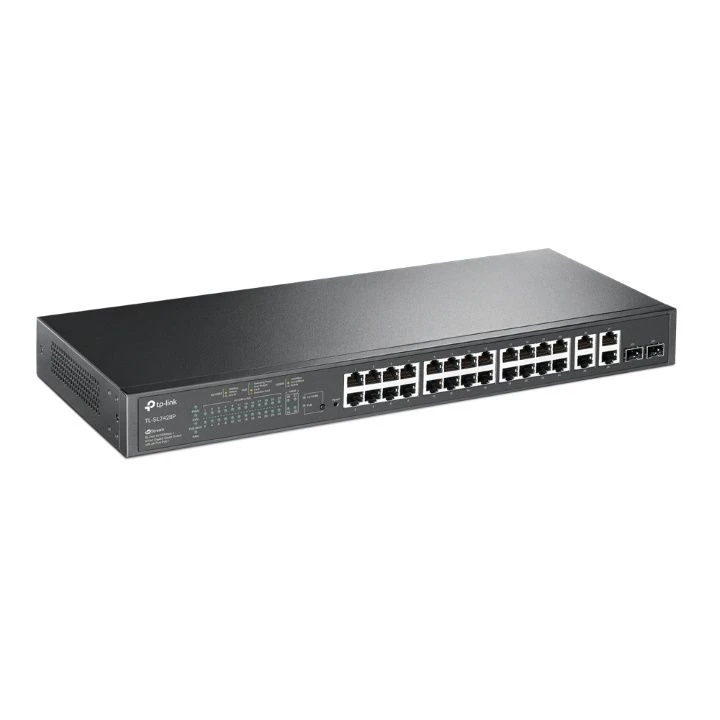

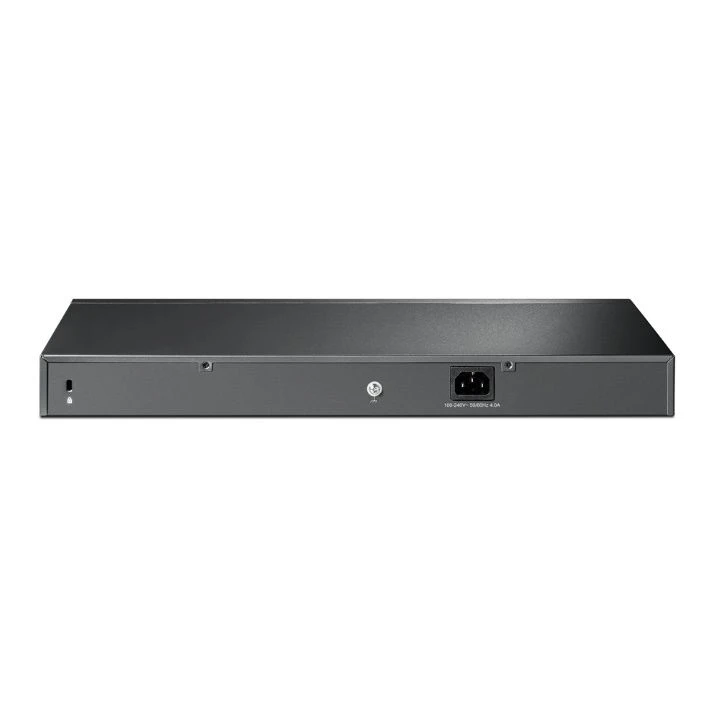

TP-Link TL-SL2428P JetStream 24-Port 10/100Mbps + 4-Port Gigabit Smart PoE Switch With 24-Port PoE+

The TL-SL2428P is part of TP-Link’s new JetStream gigabit smart switches providing huge upgrades compared to previous versions. Switches in this range are able to be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping, and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

The switch is equipped with 24 10/100Mbps RJ45 ports, 4 10/100/1000Mbps RJ45 ports, and 2 combo Gigabit SFP slots. The 24 10/100Mbps ports support 802.3at/af (PoE+) standard with a total PoE power budget of 250W.

Unit features:

Advanced QoS Features

– in order to integrate voice, data, and video service on one network the switch applies rich QoS policies

Abundant Layer 2 Features

– the TL-SL2428P supports the complete lineup of layer 2 features, this includes Port Isolation, Port Mirroring, Lik Aggregation Group, and 802.3x Flow Control function.

Enterprise Level Management Features

– supports various user friendly standard management features including intuitive web-based Graphical User Interface (GUI) or industry-standard Command Line Interface (CLI)

IPv6 Support

– supports comprehensive IPv6 features including IPv6 management, ACL, QoS and MLD Snooping

TL-SL2428P Highlights

– Gigabit Ethernet connections on all ports provide full speed of data transferring

– L2+ Feature ——Static Routing, helps route internal traffic for more efficient use of network resources

– Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X and Radius Authentication

– L2/L3/L4 QoS and IGMP Snooping optimize voice and video applications

– Comprehensive IPv6 support for management, QoS, and ACL

– Web/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features

Hardware Features	TL-SG2008P
Interface	24 x 10/100/1000Mbps RJ45 Ports 4 Gigabit SFP Slots
PoE Standard	802.3af/at
PoE Ports	24, up to 30W
PoE Power Budget	250W
Power Supply	100-240V AC
Max Power Consumption	294.7W (with 250W PD connected)
Max Heat Dissipation	1005.66 BTU/hr (with 62W PD connected)
Standby Power Consumption	15.8W
Dimensions	440 x 220 x 44mm
Fan Quantity	2
Installation	Rackmount
