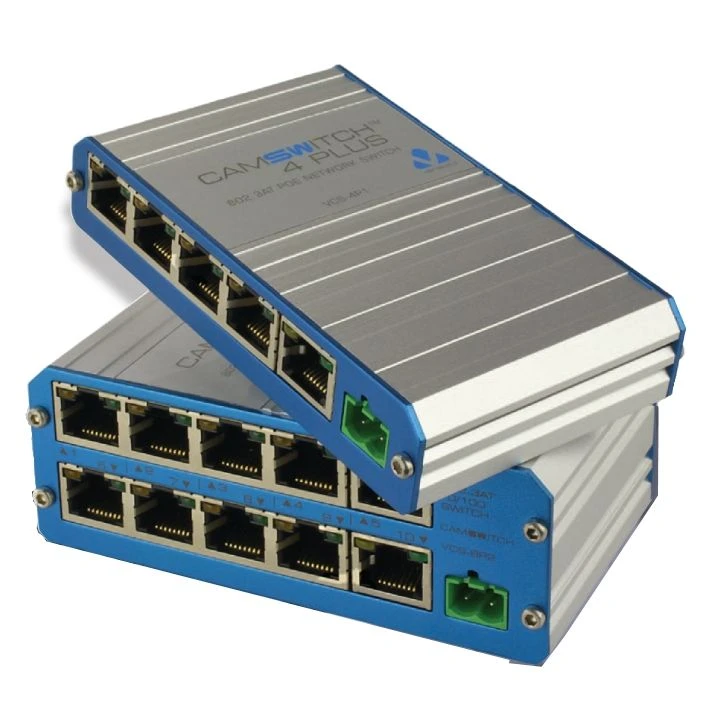

Veracity CAMSWITCH 4 Plus Network Switch With 4 PoE And 1 Ethernet Port – VCS-4P1

The Veracity CAMSWITCH Plus 4 is a 5 port 10/100 network switch which features four POE ports and one port for non-POE downlink or optional POE input. It has been designed to deliver power to effectively support POE equipment, such as IP CCTV Cameras.

CAMSWITCH Plus 4, 10/100 Ethernet switch features full IEEE 802.3af/at POE compliance to support IP cameras and other POE powered devices. It can be powered using a local power supply or a unique POE input. It is compact, rugged and extremely user-friendly as it requires no user configuration.

Ethernet speed, duplex and crossover are detected or negotiated automatically, and IEEE 802.3af/at POE is delivered automatically to compliant devices. For other equipment, all ports can be used for regular non-POE Ethernet connections.

Wall mount clips are included with the CAMSWITCH Plus 4 to aid with tidy installations.

How To Work Out The Total Power Required For a Camera Installation

1) Look up the power in watts from each camera’s datasheet. Allow for any devices which may be added inthe future.

2) Add these figures together to find the total budget required. (Cable losses are already accounted for and do not need to be included).

3) Select a power source which can support the bdger required or greater.

The below diagram offers examples of power budgets vs supported systems.
