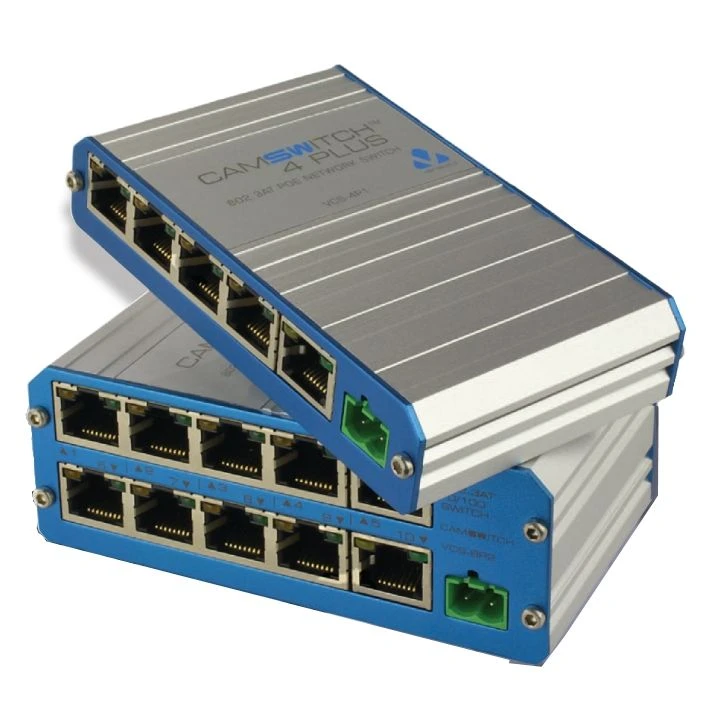

Veracity CAMSWITCH 8 Plus Network Switch With 8 PoE And 2 Ethernet Port – VCS-8P2

The Veracity CAMSWITCH Plus delivers the power and practicality you need to effectively support Power over Ethernet equipment.

The CAMSWITCH Plus can be powered by a range of AC adapters or POE sources to suit the budget required. The below table demonstrates the typical number of devices that can be supported by various Veracity power sources.

How To Work Out The Total Power Required For A Camera Installation

1) Look up the power in watts from each camera’s datasheet. Allow for any devices which may be added in the future.

2) Add these figures together to find the total budget required. (Cable losses are already accounted for and do not need to be included.

3) Select a power source which can support the budget required or greater.

CAMSWITCH Plus may be used with Veracity’s 57V DC power supply models, providing a range of power budgets to suit each installation. Veracity’s class-leading power system delivers the maximum power, efficiency, and reliability available within the POE standard. It also supports maximum range extension: using CAMSWITCH Plus is equivalent to adding an OUTSOURCE Plus injector or separate 57V power supply when delivering POE to OUTREACH Max, LONGSPAN or HIGHWIRE PowerStar.



CAMSWITCH Plus can also be powered by POE, supporting remote positioning, range extension, or adding devices to existing cables. Veracity’s OUTSOURCE Plus injector is recommended for maximum POE budget and range, however for applications with low POE requirements or data-only connections, a regular 802.3af switch may be used.





Veracity CAMSWITCH 8 Plus Dimensions
