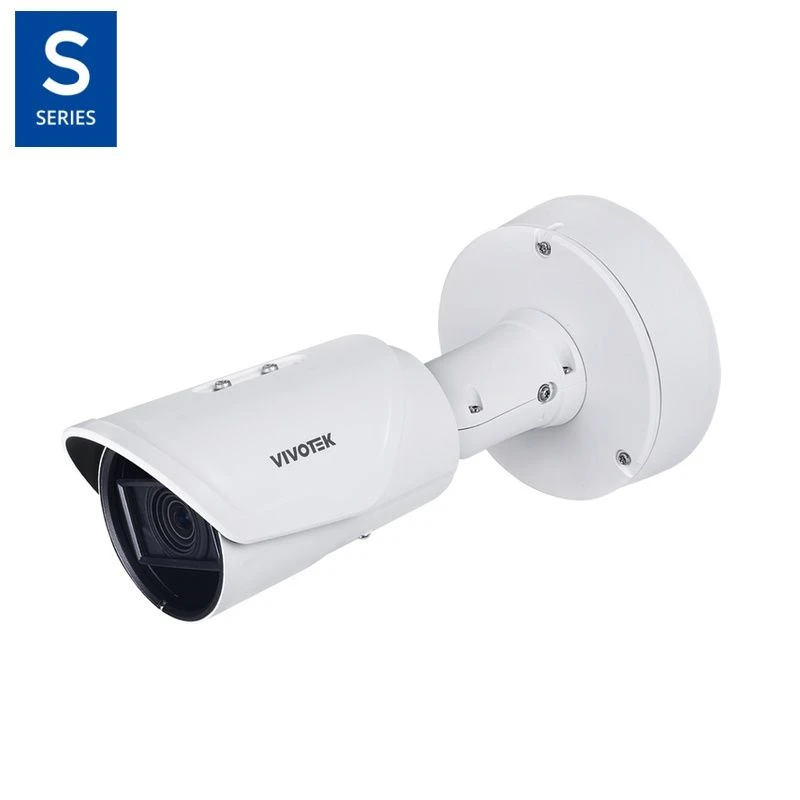

Vivotek IB9391-EHTV-v2 4K (8MP) Bullet Network Camera

The IB9391-EHTV-v2 from Vivotek, is a 4K (8MP) resolution Bullet camera, with PTZ (pan, tilt, and zoom) capabilities.

Equipped for Outdoor application, with IP66/67 Ingress protection and IK10 vandal resistance, the IB9391-EHTV-v2 is suitable for a number of different application environments.
It also offers two lens options – a wide 2.7mm ~ 13.5mm lens (for wide area surveillance), and a tele 5mm ~ 50mm lens (for telephoto zoom / surveillance from a distance) – offering users a range of surveillance capabilites for an effective and adaptable video security solution.

---

PTZ Functionality

Allowing for effective surveillance with impressive camera manouvers, the IB9391-EHTV-v2 is designed with Pan, Tilt, and Zoom functionality, and, supports Remote focus and Remote zoom.

Pan / Rotation range – ±180° | Tilt range – 90° | Zoom – 48x digital zoom (4x on IE plug-in, 12x built-in)

---

Image Quality and Performance

IR Illumination – Features built-in IR Illuminators, with Smart IR III (AI powered image enhancement), capable of up to 50m/100m area coverage

Impressive Low Light Performance –
– SNV (Supreme Night Visibility) – Improves image quality in low light environments, so your surveillance system can continue working effectively regardless of the amount of light in a scene
– 120dB WDR (Wide Dynamic Range) Pro – Improve image clarity and detail in challenging lighting conditions, providing visibility in extremely bright and dark environments

Image Settings –
– General settings – Video title / Time stamp overlay, Video orientation (flip, mirror, rotation), Day / Night settings
– Illuminators – Smart IR (target zone), White balance, Image adjustment (brightness, contrast, saturation, sharpness, gamma curve), Defog, 3DNR, LDC, EIS, Scene mode (auto, deblur)
– Exposure settings – BLC, HLC, Exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment

Video Streaming – Adjustable resolution, Quality, constant bit rate control, and, Smart Stream III

---

AI Analytics, Alarms and Events

Vision Object Analytics – Object detection (people / vehicle (4-wheeled and 2-wheeled), Attribute extraction (people (gender, colour, accessories, etc) / vehicle (type – bike, bus, car, motorcycle, truck, etc – and colour), Re-Search extraction, and, Path extraction

Smart Motion detection – supports 5-window Motion detection, People / Vehicle detection, and, Time filter

Smart VCA – includes; Intrusion detection, Loitering detection, Line-crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection, Running detection, Parking violation detection, and, Restricted zone detection

Event Triggers – Audio detection, Camera tampering detection, Cybersecurity events (brute-force attack, cyberattack, and quarantine event), Digital input, Manual trigger, Motion detection, Periodical trigger, Recording notification, SD Card life expectancy, Shock detection, and, System boot

Event Actions – Event notification via Audio clip, Camera link, Digital output, Email, HTTP, FTP/SFTP, NAS server, and SD card. File upload via Email, HTTP, FTP/SFTP, NAS server, and SD card

---

DORI: Detect, Observe, Recognise, Identify

A camera’s DORI distance provides users with a general overview of its capability to distinguish between people and objects found within its field of view.

DORI	Detect	Observe	Recognise	Identify
Definition	25ppm / 8ppf	63ppm / 19ppf	125ppm / 38ppf	250ppm / 76ppf
Distance (Wide / Tele)	100.1m / 204.5m	40m / 81.8m	20m / 40.9m	10m / 20.4m

---

Packing Contents:

– Quick Installation guide

– Product labels

– Alignment sticker

– L-shaped wrench

– Screw pack

– Waterproof accessory pack

– Sunshield

– I/O cable

– Adaptor plate

– Conduit bracket

---

Dimensions:
