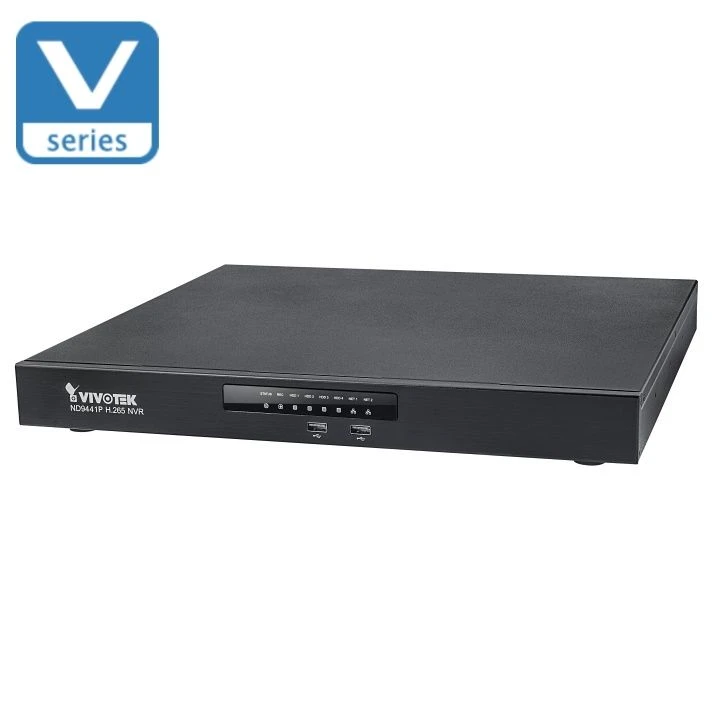

Vivotek ND9541P 32 Channel Network Video Recorder (with 16 PoE Ports)

---

The ND9541P is a 32 channel network video recorder with 16 built-in PoE (Power over Ethernet) ports to power up to 16 cameras directly from the unit. As well as this, the ND9541P supports a maximum resolution of 12 megapixel for high-quality and detailed images.

This NVR features the new generation NVR firmware core+. Vivotek Core+ 3.0 is embedded with the latest technology including features such as cybersecurity management, Smart VCA Event Search, Smart Search II functions and counting solutions.

Other features of the ND9541P:

Cybersecurity Management: supported by Trend Micro IoT security the NVR is empowered to automatically detect and prevent credential-based attacks and to block suspicious events. Vivotek cameras that support Trend Micro IoT are supported by the ND9541P and so instant alerts are sent to understand the type and status of the cyber-attacks and attack information is acquired from the cameras.

Smart VCA Search: supports the event search of Vivotek’s deep-learning video analytics technology for events such as people tracking frames and motion detection frames. Users are able to search by single or multiple event types, playback triggered events, and then export these results into video clips.

Smart Search II: camera metadata is recorded onto the hard drives of the NVR and Smart Search II technology will proceed to search the corresponding playback video. This makes sorting through large amount of evidence to find the required footage easier and quicker.

Counting Solution: 3D people counting is supported by the NVR and counting rules can be shown on the ND9541P’s video display from counting cameras. The data from this is stored automatically to the hard drives and users can build customised counting reports through the VIVOCloud interface.

PoE Management: provides more efficient operation with the ability to quickly troubleshoot problems and monitor power usage. If overload occurs some PoE ports with automatically power-off some PoE ports until the system power falls below the threshold for system protection.

Customer Support: the customer support function on the NVR allows technical support to rapidly debug your device.

---

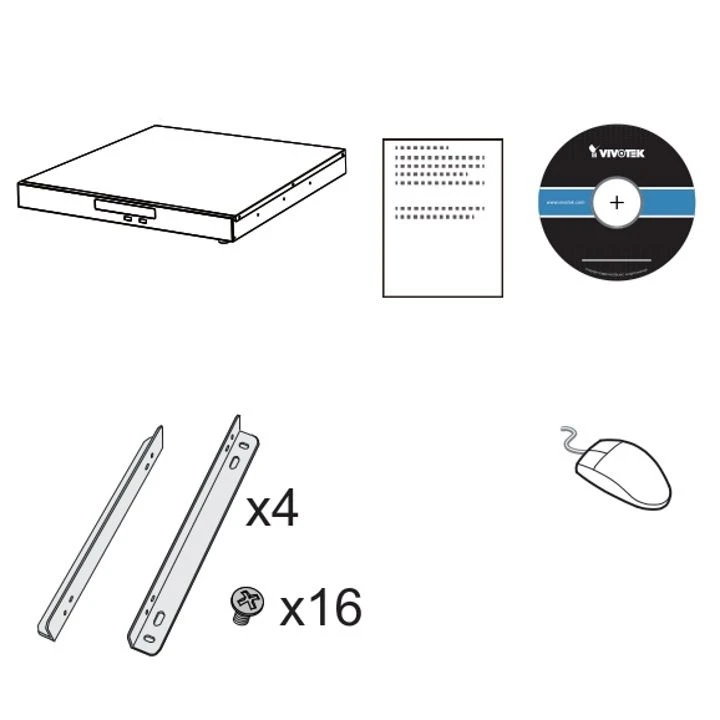

Included Accessories:

– Power Cord

– Quick Installation Guide

– 32 x H.D.D. Screws

– 8 x H.D.D. Brackets

– 1 x USB Mouse

– 4 x SATA Cables

---

---
