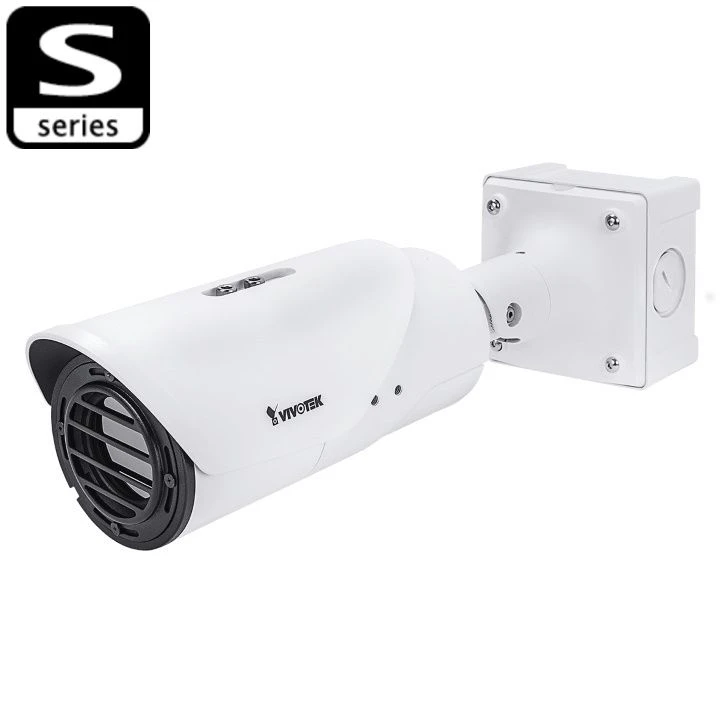

Vivotek TB9331-E Infrared Thermal Bullet Camera

---

The Vivotek TB9331-E is an outdoor thermal bullet camera that has been designed to detect people and vehicles in adverse weather and difficult lighting conditions, as well as any situation that creates poor visibility.

The TB9331-E has four lens options; 8.8mm, 19mm, 35mm and 50mm, enabling the camera to provide users with long distance monitoring of vehicles up to 4500m away in complete darkness or under challenging conditions including fog, rain, smoke and dust.

Equipped with a 720 x 480 resolution, uncooled thermal sensor and Vivotek’s VCA, the TB9331-E offers enhanced perimeter protection and border security. As well as this Trend Micro IoT security software provides users with high levels of network protection.

Featuring an IP66, IP67, IK10 and NEMA 4X rated housing the camera is protected against shock and vibration, humidity, dust, and even extreme temperature fluctuations (the TB9331-E can operate in temperatures ranging from -50°C ~ 60°C) to maintain stable and reliable video regardless of how harsh the environment is.

Focal Length	8.8mm	19mm	35mm	50mm
Horizontal Field of View	69.6°	35.7°	19.8°	14°
Vertical Field of View	49.7°	24.2°	13.3°	9.3°
Human Detection (1.5 pixels)	262 m (859 ft)	566 m (1,856 ft)	1,043 m (3,422 ft)	1,490 m (4,888 ft)
Human Recognition (6 pixels)	66 m (216 ft)	142 m (465 ft)	261 m (856 ft)	373 m (1,223 ft)
Human Identification (12 pixels)	33 m (108 ft)	71 m (232 ft)	130 m (426 ft)	186 m (610 ft)
Vehicle Detection (1.5 pixels)	801 m (2,627 ft)	1,729 m (5,672 ft)	3,184 m (10,446 ft)	4,549 m (14,924 ft)
Vehicle Recognition (6 pixels)	200 m (656 ft)	432 m (1,416 ft)	796 m (2,611 ft)	1,137 m (3,730 ft)
Vehicle Identification (12 pixels)	100 m (328 ft)	216 m (708 ft)	398 m (1,305 ft)	569 m (1,866 ft)

---

Included Accessories:

– Quick installation guide

– Alignment sticker

– Screw pack

– Waterproof accessory bag

– Junction Box

Sunshield

---
