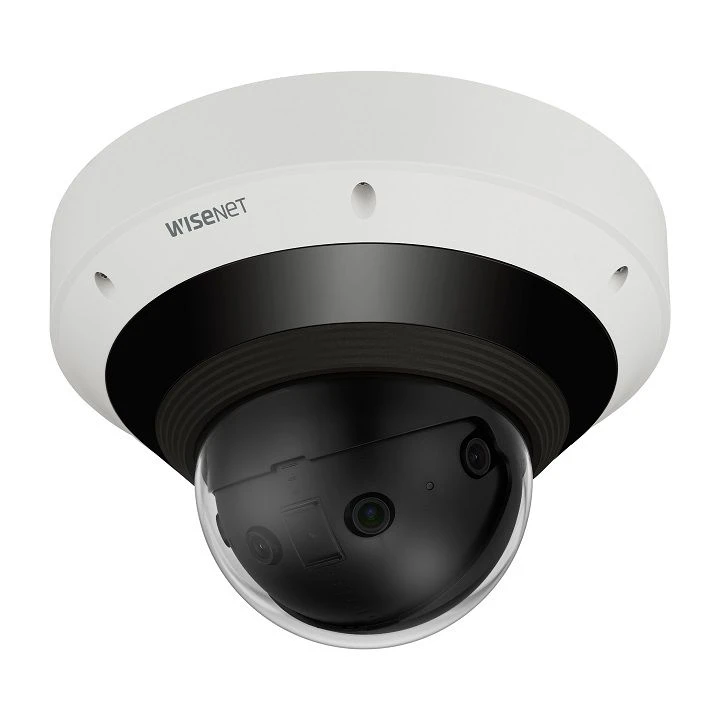

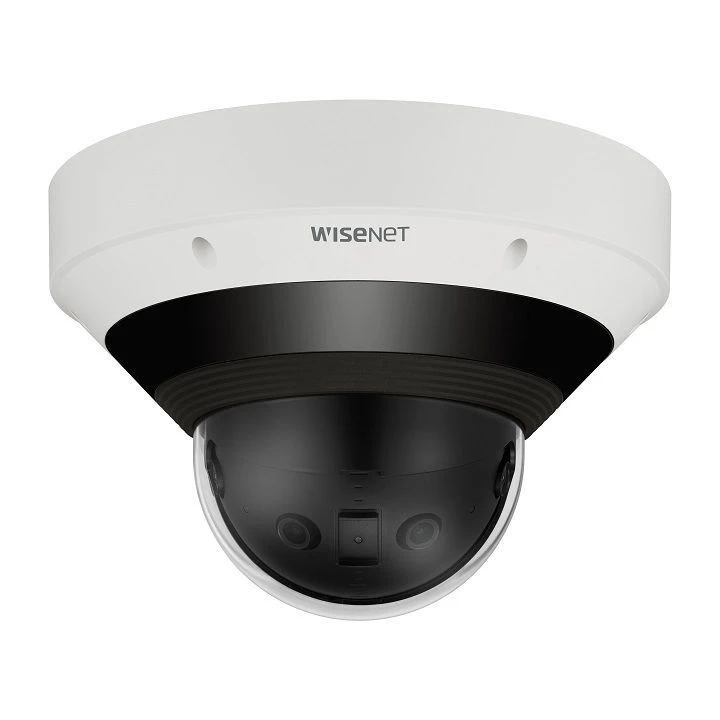

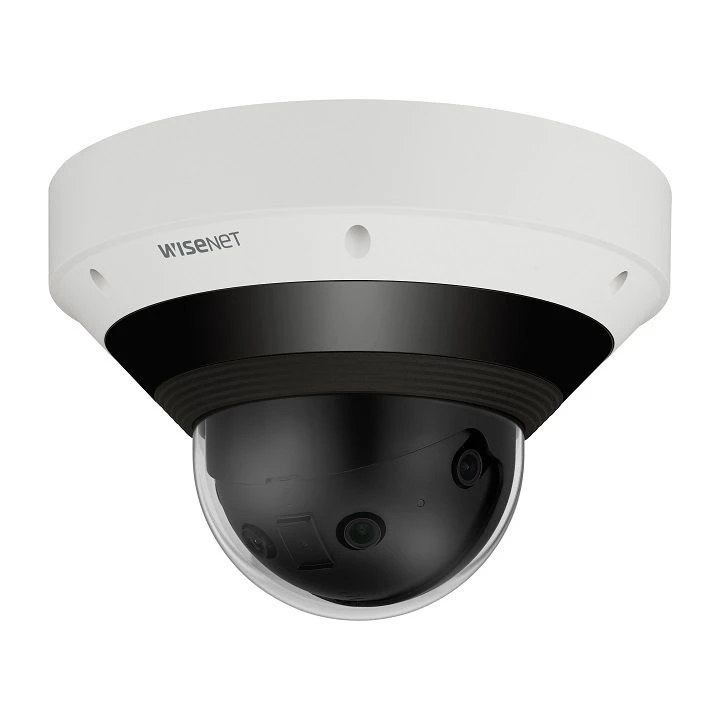

Wisenet PNM-9031RV 15MP H.265 Panoramic Camera

The Wisenet PNM-9031RV is a 15-megapixel 4x lens panoramic camera. With this camera, operators can use fewer cameras to monitor events with 4 lenses built into one. This makes the PNM-9031RV a highly cost-effective option for areas that require high-quality images over a large area.

The camera features WiseIR integrated illuminators as well as independent zones with auto and manual adjustments, this ensures uninterrupted monitoring in low-light conditions. IR is effective up to 30m, for all four lenses of the device. The 192° horizontal field of view and 65° vertical field of view provides users with a wide area of coverage.

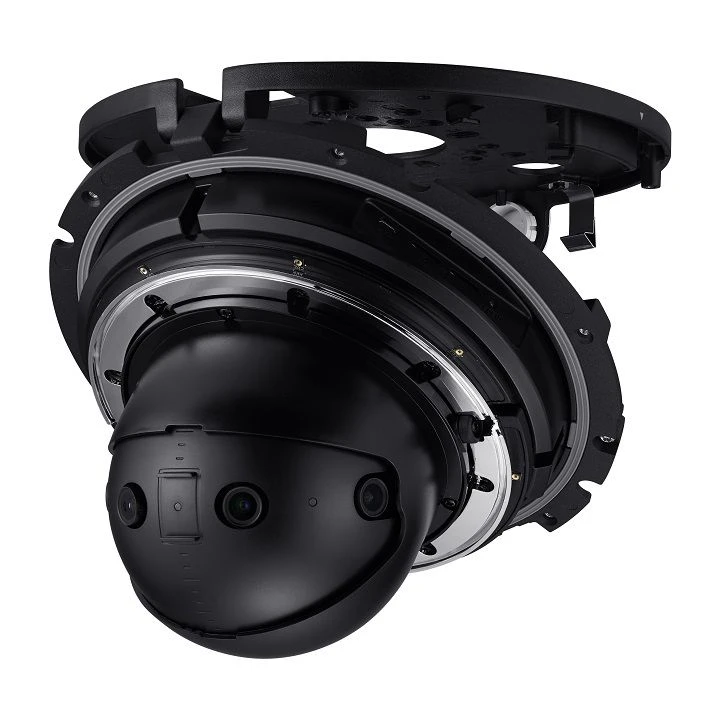

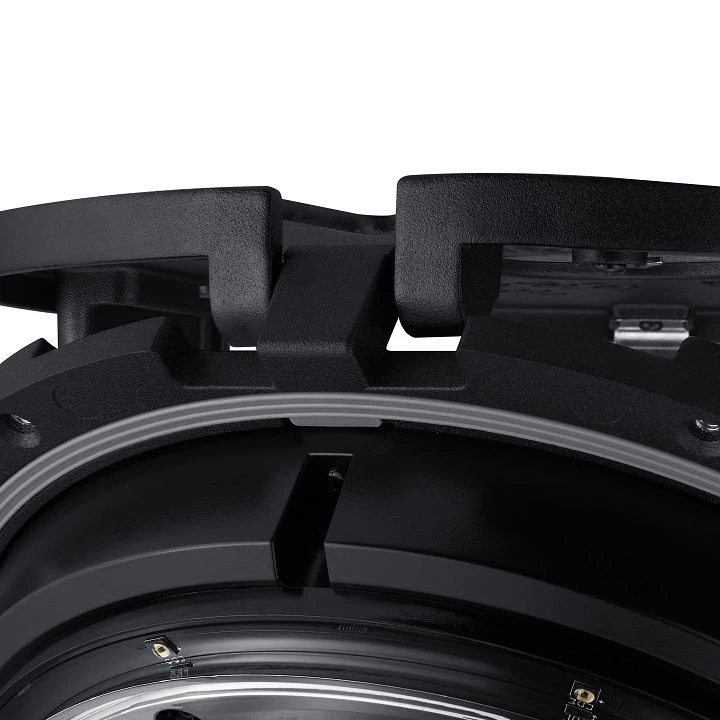

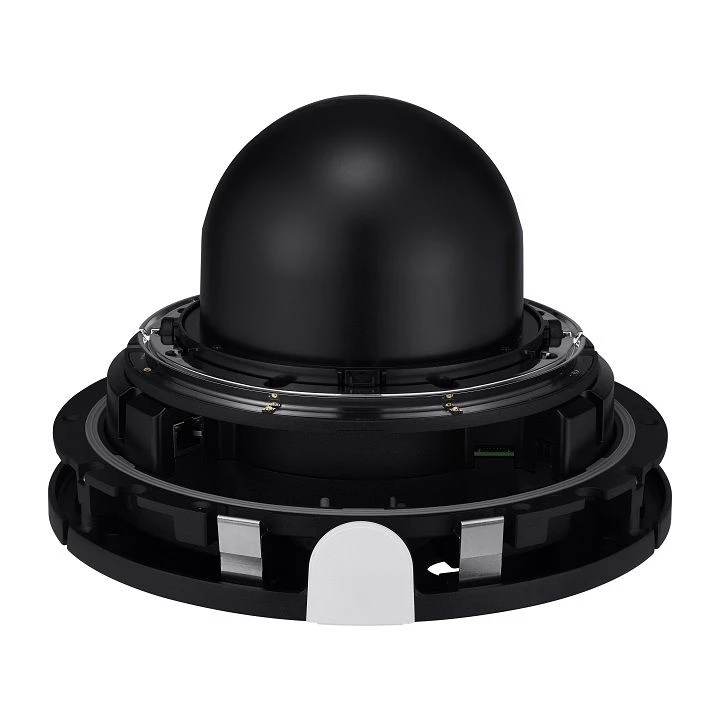

Not only this but the unit is equipped with a range of video analytics including motion detection, defocus detection, virtual line, enter/exit detection, audio detection, heat-mapping and appear/disappear. The PNM-9031RV is easy to install with its hanging hinge design, metal cord harness and push mount clips. A USB connector makes for easy setup via a computer or via WiFi using an optional USB dongle and the Wisenet Installation App.

The PNM-9031RV features an IP66 weather-resistant and IK10 vandal-resistant housing protecting the camera against both harsh outdoor weather conditions and vandal attempts. This enables the camera to be installed in a range of indoor and outdoor applications including, shopping centres, car parks, warehouses, parks, city centres etc.

---

Key Benefits:

– Reduce installation and infrastructure costs by replacing multiple cameras with on multi-sensor camera, seamlessly providing HD panoramic view over one Ethernet connection

– Save on VMS licenses, Wisenet WAVE and other leading VMS, only requires one channel license

– Excellent image quality in low-light conditions with multiple auto IR illuminating the scene for all image sensors

– Creating multiple virtual channels from any area of the panoramic view

– Robust and durable in any weather with IP66, IK10 and NEMA4X certifications

– Installation aids such as WiFi dongle (optional) and CVBS video output

– NDAA compliant

---

Packing List:

– PNM-9031RV x 1

– Quick guide x 1

– Power terminal block x 1

– Template x 1

– Power cable x 1

– Audio/alarm cable x 1

– Cable bushing x 1

– Machine screws x 4

– Cap installer x 1

– Screw bit x 1

---

---

4.3mm: Horizontal field of view: 192°
