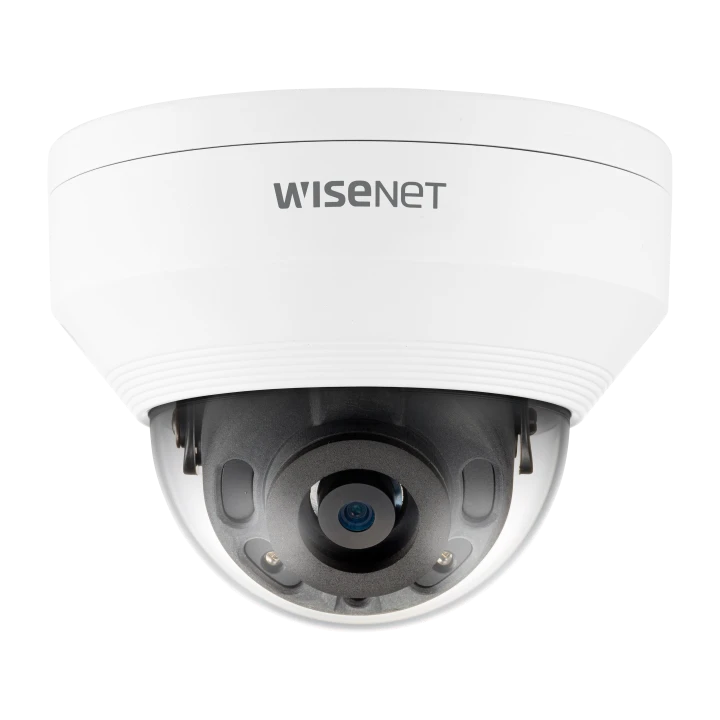

Wisenet QNV-8030R 5MP Vandal Resistant Dome Camera

---

The 5-megapixel vandal resistant dome cameras are part of Wisenet’s new generation of Q series products. The Q series is a budget-friendly range offering simple and essential features ideal for small to medium-sized applications.

The QNV-80x0R range of cameras come in three different focal length options:

– QNV-8010R ~ 2.8mm

– QNV-8020R ~ 4mm

– QNV-8030R ~ 6mm

This choice enables users to select the camera with the focal length that best suits their needs.

As well as this the unit is ideal for use in indoor or outdoor applications with its IP66 weather-resistant and IK10 vandal-resistant housing which protects the cameras against both harsh outdoor weather conditions and vandal attempts. This camera can be used in a wide range of applications including outside of houses, offices, shops etc.

With a choice of either 12V DC or PoE power the device could not be easier to install. Selecting PoE will make the installation even simpler as both the power and data will be transported across the one cable saving on both installer time and cost.

The camera is able to produce excellent images both day and night with its auto (ICR) day and night lens and built-in IR LEDs effective up to 30m (dependent on model selected, QNV-8010R = 20m, QNV-8020R = 25m, QNV-8030R= 30m).

---

Packing List:

– QNV-80x0R x 1

– Quick guide x 1

– Warranty card x 1

– Template x 1

– L wrench star shaped x 1

– Alarm cable x 1

– Card-type moisture absorbent x 1

– Cable for testing monitor x 1

– Cable bush x 1

– Cap installer x 1

---

---

QNV-8010R – Horizontal field of view: 104.7°
QNV-8020R – Horizontal field of view: 79.8°
QNV-8030R – Horizontal field of view: 49.4°

For help on figuring out which focal length is best for you please see here.

---
