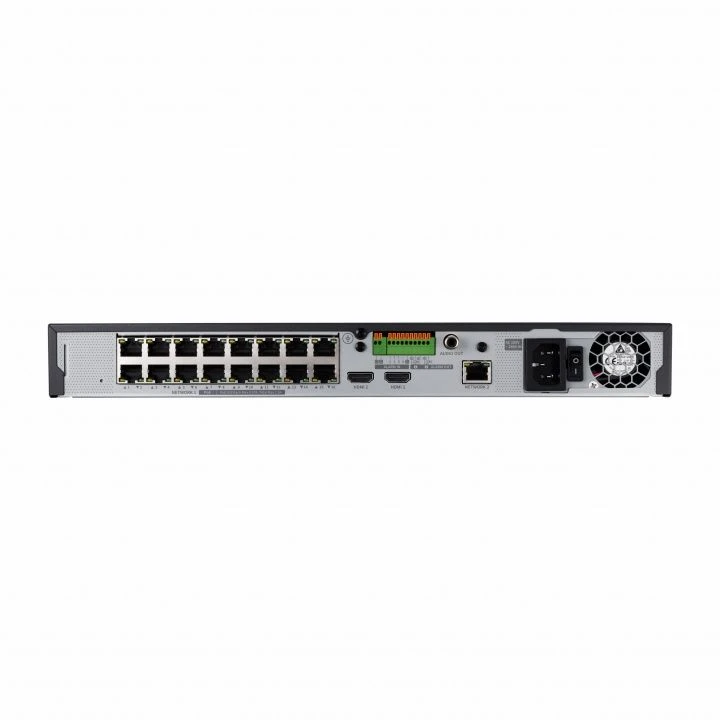

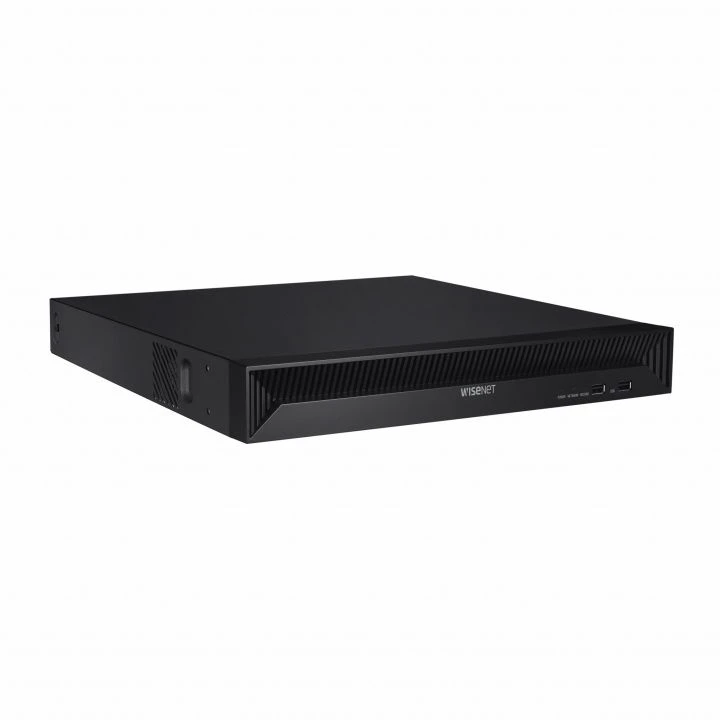

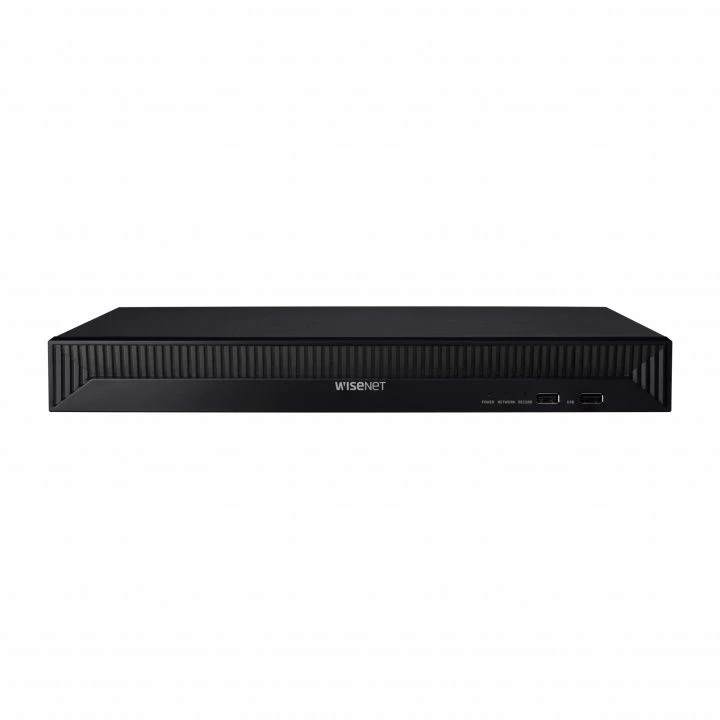

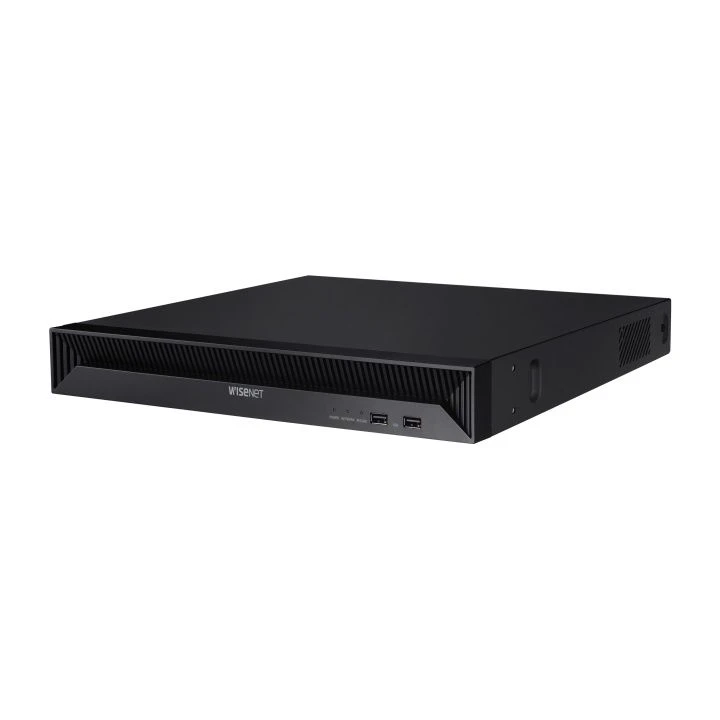

Wisenet QRN-1630S 16 Channel Network Video Recorder With PoE Switch

The Wisenet QRN-1630S is a 16-channel network video recorder equipped with a built-in 16-port PoE (Power over Ethernet) switch. This enables users to directly connect up to 16 cameras to the NVR, simplifying the installation of the product.

Designed for small to medium-sized video surveillance applications, the QNR-1630S is ideal for use in scenarios that require a cost-effective, robust, and reliable video recording and storage solution. This makes the unit great for use in budget-limited offices, retail, and warehouse applications that do not require a high number of cameras.

The QRN-1630S supports H.265 compression, which improves bandwidth efficiency by providing an 80% saving in bandwidth costs when compared to using H.264 compression.

The install time for these units has been minimised as integrators and end-users can remotely connect to the devices via smartphone or tablet without the need to set up a complex network. This can be done by using P2P and unique QR codes. As well as this installation time and cost is reduced by the Power over Ethernet functionality.

Event Trigger:

– Alarm input

– Video loss

– Camera event (Sensor, MD, Video Analytics, Defocus, Audio)

– Dynamic event

Event Action:

– email

– Event push

– PTZ preset

– Alarm out

– Buzzer

– Monitor out

Key Benefits:

– new UI 2.0

– supports AI search (people, face, vehicle, license plate)

– supports BestShot view

– supports thermal imaging camera/PTZ linked camera

– supports a range of 4K camera resolutions

– outputs a 4K high definition image using HDMI

– supports dual monitor output

– display HDD operation status by HDD SMART

– HDD overwrite enabled

– function to export using USB memory and external hard disk

– view multi-channel time line when playing videos

– various search modes (time, event, smart, text, export, ARB)

– remote monitoring function by Windows Network Viewer

– installation wizard function

– support remote monitoring feature by DDNS/P2P support

– provides smarphone event alarm (sending real-time event messages)

---

Packing List:

– QRN-1630S x 1

– Mouse x 1

– Power cable x 1

– Bracket rack x 1

– Quick guide x 1

– HDD fixing screws x 8

– Bracket fixing screws x 4

– SATA power cable

– SATA data cable

---

---
