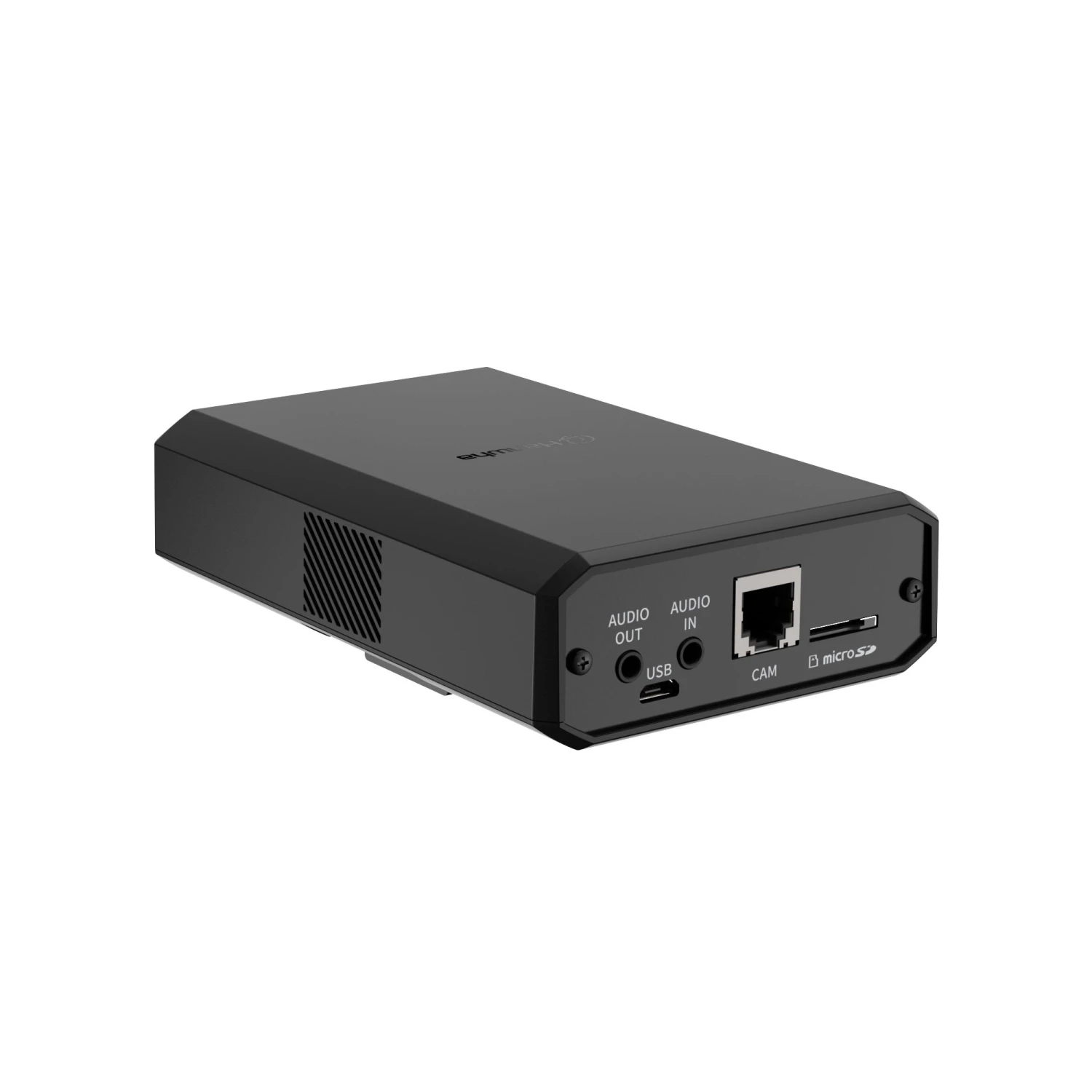

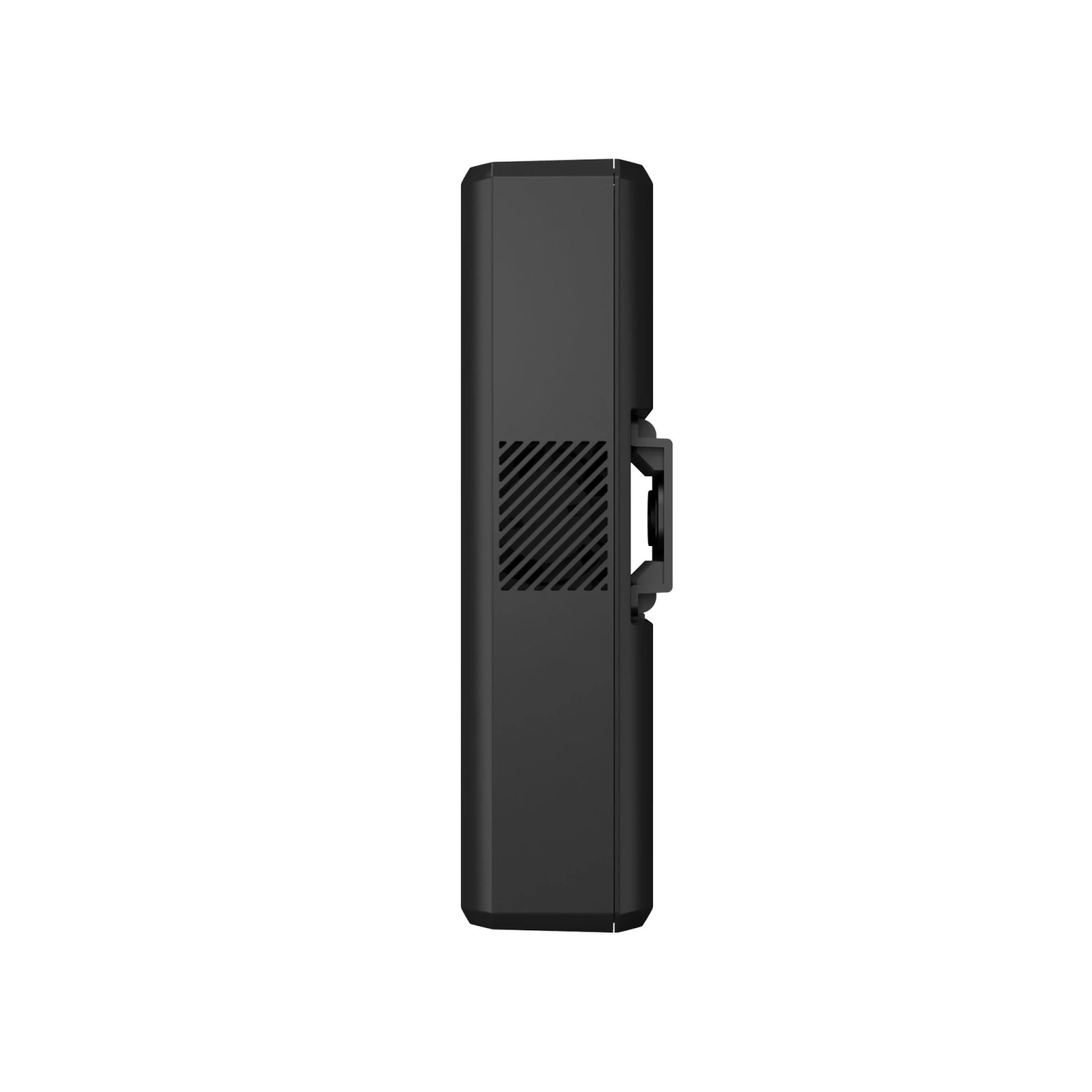

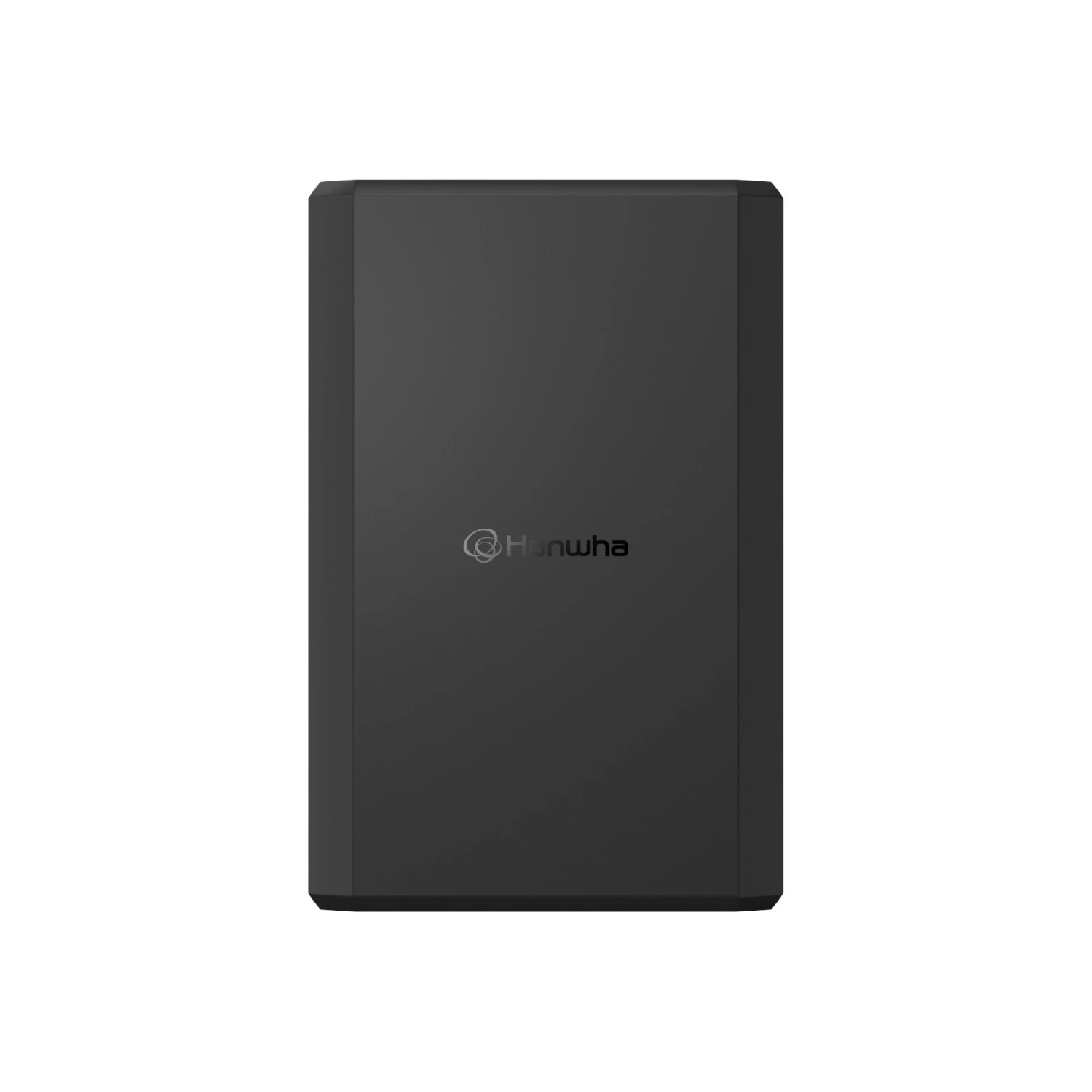

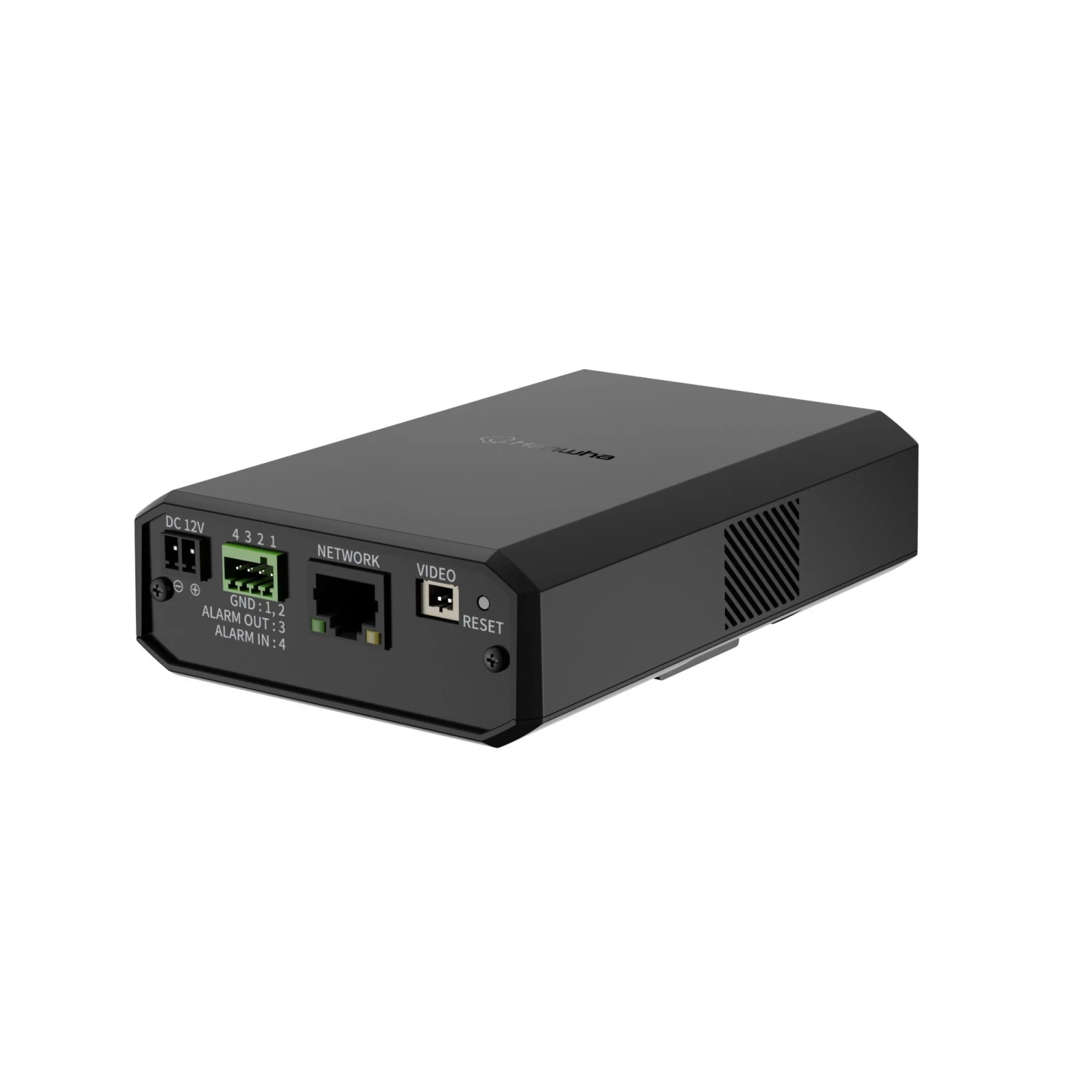

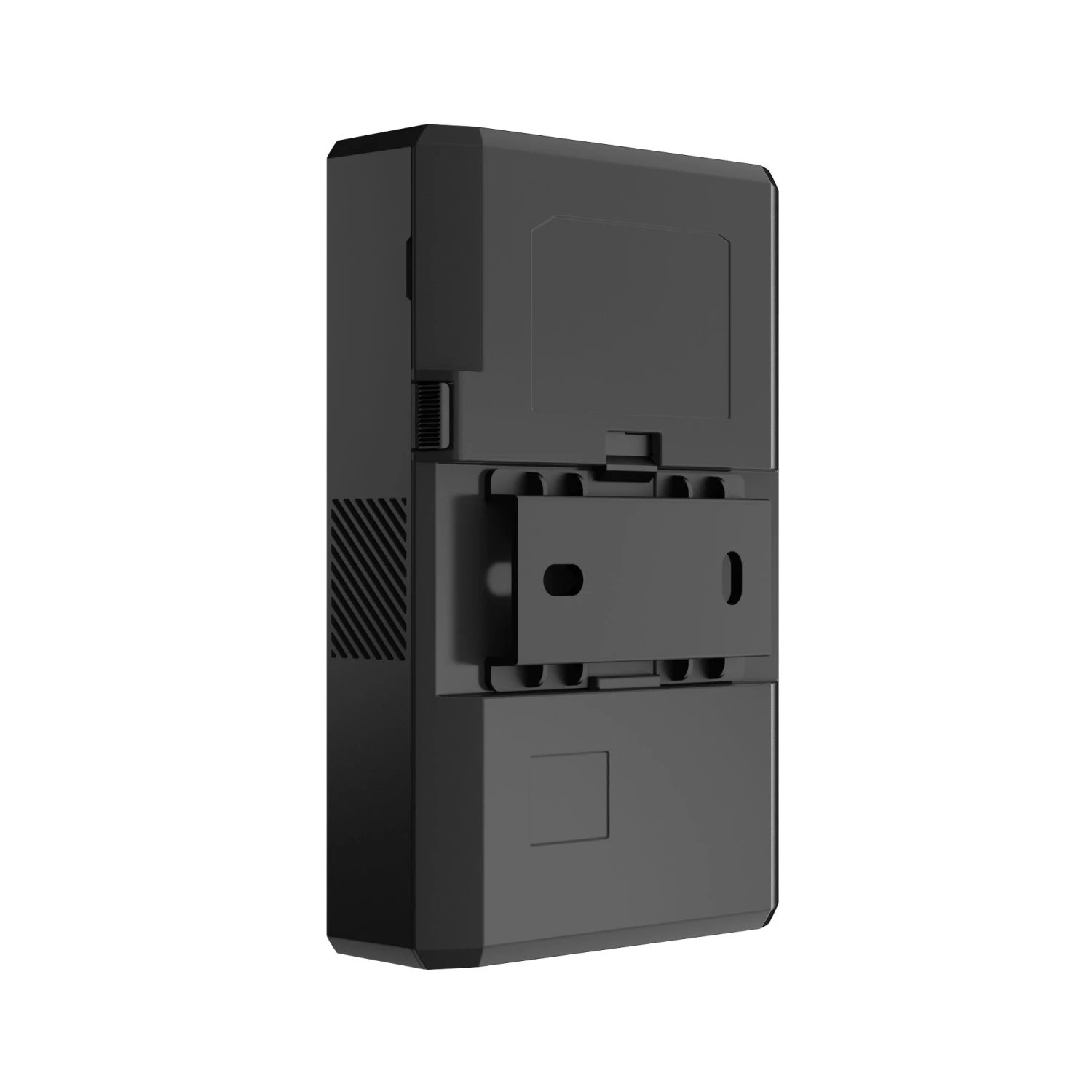

Wisenet XNB-6002 2MP Remote Head Camera Module

The Wisenet XNB-6002 is a 2-megapixel remote head camera module and has been designed for applications that require a discreet camera such as ATMs.

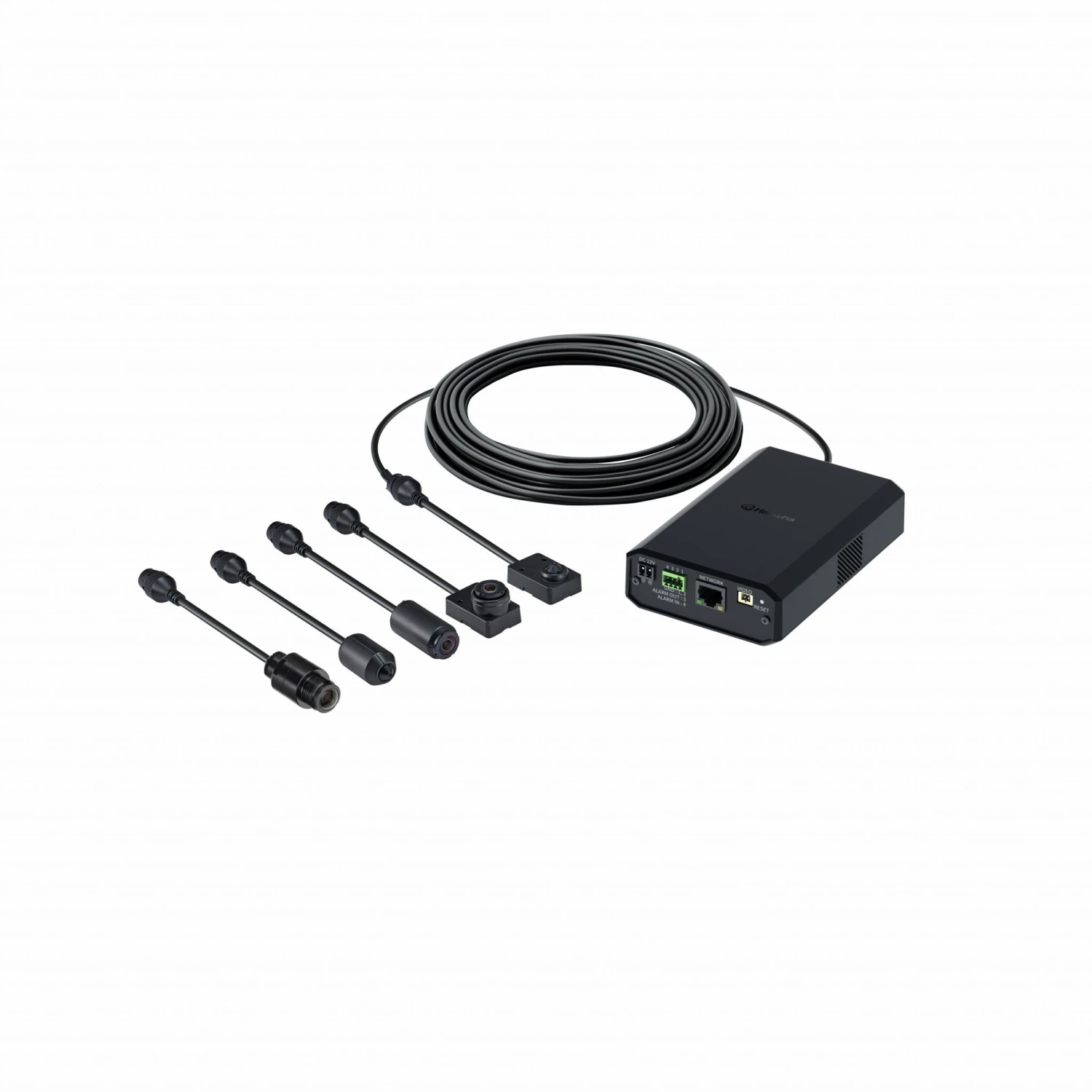

The remote camera heads comprise an image sensor camera equipped with a fixed, pinhole or fisheye lens. The camera lenses are designed to be installed remotely from the other components of the XNB-6002 camera body. This enables the lens to be installed discretely within an ATM or other locations such as the corner of rooms or in a lift.

Please note the lens must be purchased separately:

	SLA-T1080FA	SLA-T2480A	SLA-T2480VA	SLA-T4680A	SLA-T4680VA
Video
Imaging Device	1/2.8″ 2MP CMOS
Min. Illumination	Colour: 0.03Lux (F1.6, 1/30sec)	Colour: 0.045Lux (F2.0, 1/30sec)		Colour: 0.06Lux (F2.5, 1/30sec)
Lens
Focal Length	1.6mm	2.4mm		4.6mm
Max. Aperture Ratio	F1.6	F2.0		F2.5
Angular Field of View	H: 187°	H: 138°		H: 73°
Mount Type	RJ12 connected with main unit
Focus Control	Fixed
Mechanical
Colour/Material	Black/Metal	Black/Plastic	Black/Plastic, Metal	Black/Plastic	Black/Plastic, Metal
Dimensions/Weight	Ø35xL68.9mm, 430g	Ø24xL49.8mm, 318g	W30xH27.9xD45mm, 328g	Ø24xL49.8mm, 310g	W30xH27.9xD45mm, 321g

---

Packing List:

– XNB-6002 x 1

– Quick guide x 1

– Installation bracket x 1

– Power terminal block x 1

– Alarm terminal block x 1

– Tapping screw x 2

– Cables for the testing monitor x 1

---
