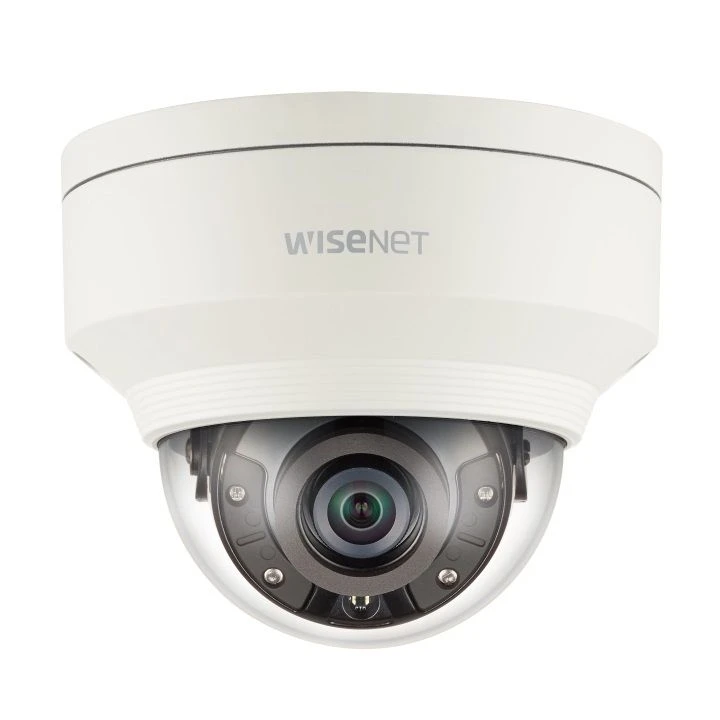

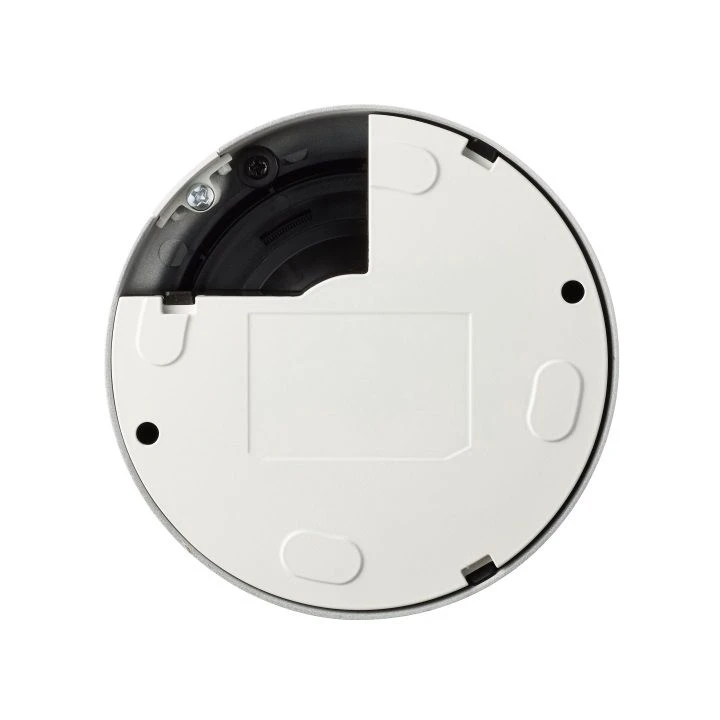

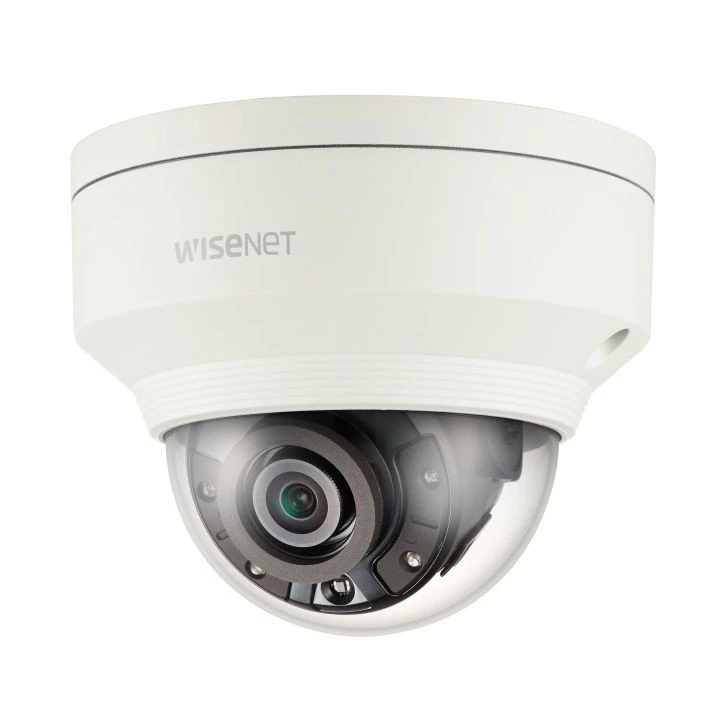

Wisenet XNV-8040R 5 Megapixel Vandal Resistant Network IR Dome Camera

---

The Wisenet XNV-80x0R is a 5-megapixel vandal-resistant network dome camera that is part of the Wisenet X series of cameras with improved features such as; H.265, 150dB WDR, audio detection, heatmap, lens distortion correction and Gyro sensor.

– XNV-8020R = 3.7mm lens

– XNV-8030R = 4.6mm lens

– XNV-8040R = 7mm lens

As well as this the unit is ideal for use in indoor or outdoor applications with its IP66 weather-resistant and IK10 vandal-resistant housing which protects the cameras against both harsh outdoor weather conditions and vandal attempts. This camera can be used in a wide range of applications including outside of houses, offices, shops etc.

With a choice of either 12V DC or PoE power, the device could not be easier to install. Selecting PoE will make the installation even simpler as both the power and data will be transported across the one cable saving on both installer time and cost.

The camera is able to produce excellent images both day and night with its auto (ICR) day and night lens and built-in IR LEDs effective up to 30m.

---

Packing List:

– XNV-80x0R x 1

– Instruction book, installer S/W CD x 1

– Quick guide x 1

– Warranty card x1

– Cable for the testing monitor x 1

– Template x 1

– Power terminal block x 1

– Tapping screw x 2

– Machine screw x 2

– L wrench x 1

– Audio/alarm cable x 1

– Power cable x 1

– Cable bush x 1

– Plastic anchor x 1

– Card-type moisture absorbent x 1

---

---

XNV-8020R – Horizontal field of view: 97.5°
XNV-8030R – Horizontal field of view: 77.9°
XNV-8040R – Horizontal field of view: 50.7°

For help on figuring out which focal length is best for you please see here.

---
