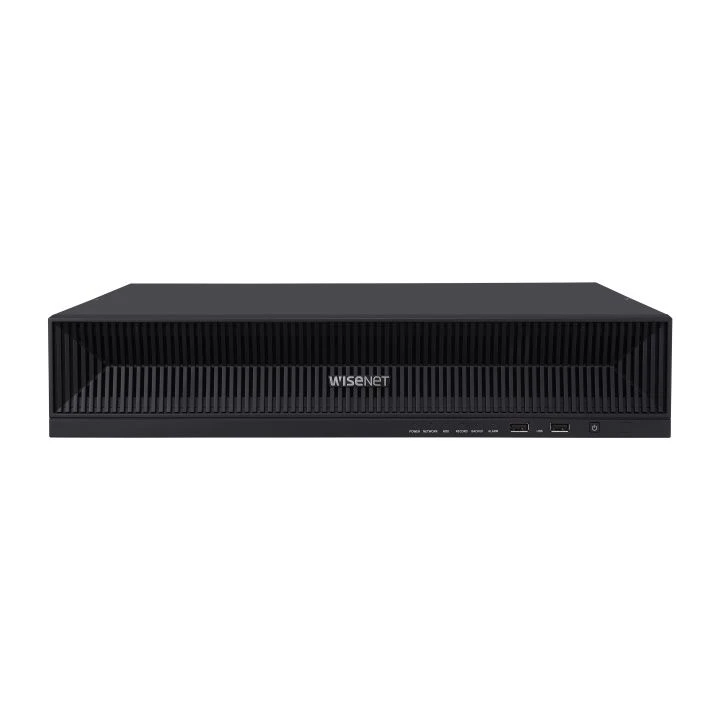

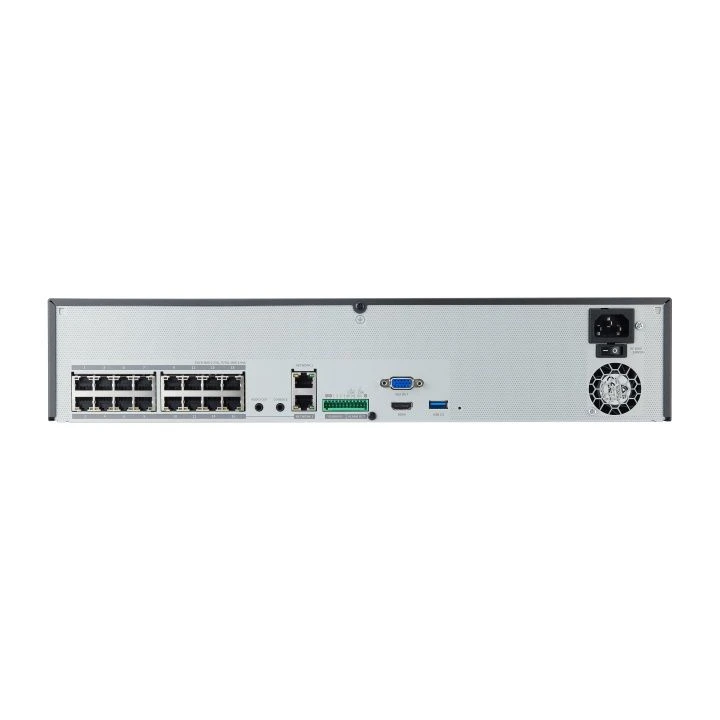

Wisenet XRN-1620SB1 16 Channel PoE Network Video Recorder

The Wisenet XRN-1620SB1 is a 16 channel network video recorder with a built-in PoE switch with 16 PoE ports.

The XRN-1620SB1 is part of the X series of NVRs which were designed to be used with the Wisenet AI cameras. The Deep Learning AI video analytics simultaneously detects and classifies various object types which include people, vehicles, faces and license plates. As well as this, the unit is supported by Wisenet AI algorithms which are unique to Hanwha Techwin and are able to identify attributes of objects or people including age group, gender or the colour of a persons clothing.

---

NVR Features:

– brand new user interface

– new trapezium design extends the life of HDDs by enhanced heating dissipation

– up to 32MP recording with improved support for Wisenet 4K, 8K, thermal imaging, PTZ and multi-sensor models

– WiseStream II complementary compression technology

– Dual HDMI and VGA display outputs

– automatic recovery backup

– event push notifications to smartphones

– ONVIF Profile S conformant

– NDAA compliant

---

Time taken to install the unit is reduced by the ability to remotely connect to the NVRs, this can be done via smartphone or tablet without the need to setup complex networks by using P2P and unique QR product codes. As well as this users can use install wizard through the web interface to quickly install without having a monitor and keyboard directly attached to the NVR.

The XRN-1620SB1 features Hanwha Techwin’s WiseStream II compression technology which combined with H.265 compression improves bandwidth efficiency by up to 75% compared to the use of the current H.264 technology.

Single or multiple event trigger rules can include a wide range of event criteria, such as audio, fog, motion, tampering and motion detection, as well as sound classification and Intelligent Video Analytics (IVA). This makes the unit ideal for use in a wide range of scenarios with complex requirements.

---

Packing List:

– XRN-1620SB1

– Mouse

– Power cable

– Bracket rack

– Quick guide

– Terminal block

– HDD fixing screws

– Bracket fixing screws

– SATA power cable

– Mounting screw for M.2 card

---

---
